Top Automatic PLC control Circular Sawing Cutting Machine Manufacturers and Suppliers in China

HY-120NC Automatic PLC control Circular Sawing Cutting Machine

ANTISHICNC is reputed as being one of the premium manufacturers and suppliers of the Automatic PLC Control Circular Sawing Cutting Machines with advanced facilities for industrial-level solutions. These saws were made with precision and efficiency along with durability to cut materials like steel, pipes, and bars.

Factory Sale HY-120NC Automatic PLC control Circular Sawing Cutting Machine

  • The transmission gear, made from highest quality gear material, is specially heat-treated and precision-ground.

  • All bearings use imported high-precision and high-strength bearings, making the whole gearbox run with small noise, with stable and reliable transmission performance.

  • Namely, the unique optimized saw blade stabilization system immensely enhances the rigidity of the clamping circular saw blade, turning the reduction of chatter and yaw of the saw blade into something very much tangible, thus, also extending the lifetime of the saw blade whilst satisfactorily guaranteeing the precision of the sawing.

Technical Proposal for HY-120NC Automatic PLC control Circular Sawing Cutting Machine

Cutting capacity
Square pipe□ mm30~80
Round bar● mm30-120
Square bar■ mm30~80
Round pipe○ mm30-120
Saw head spindle
TCT type Super hard circular saw blademm360/380 X 2.6T
Pin hole and aperturemm4xφ11 XPCD90X φ40
Spindle motorkw15(4P)
Spindle speedrpm40-160
Main clamping visesHydraulic, one set of vertical and horizontal clamping
Chips cleaning devicePassive wire brush/power wire brush(optional)
Gear backlash compensation deviceThrough shaft type magnetic powder brake
Work-piece feeding vise
Workpiece feeding drive methodAC servo motor+ball screw
Feeding vise clamping methodHydraulic, horizontal clamping
Workpiece front end removal lengthmm10~99（This function could be closed）
Workpiece final remnant lengthmm100+α（α is smaller than the setup cutting length)
Single feeding length rangemm10-800
Automatic work-piece feeding device
Allowable length to be loadedmm3000-6000
Feeding methodPr-arranged type|hydraulic lift
Hydraulic devices
Hydraulic motorkw2.25(4P)
Rated pressure of hydraulic systemMPa4.5～7
Hydraulic tank capacityL150
Cutting fluid cooling device
Cooling motorkw0.19(2P)
Machine size and weight
Weight(host machine+roller table)kg5400
Size(L x W)mm7234X3339

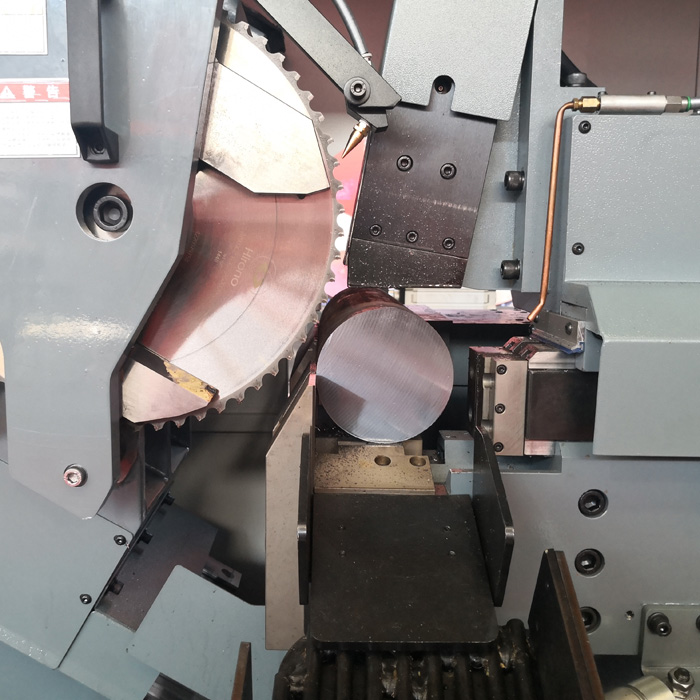

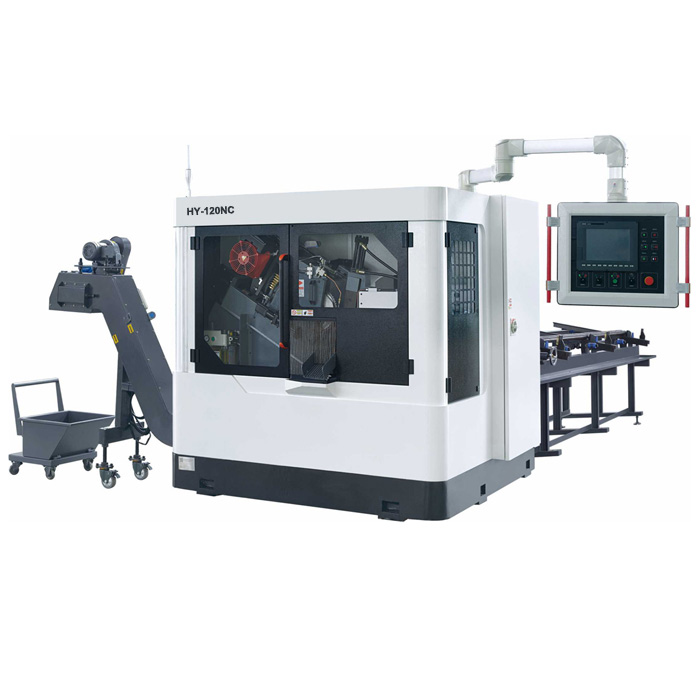

HY-120NC Automatic PLC control Circular Sawing Cutting Machine Product Display Picture

Quality Assurance and After-Sales Service

  1. This equipment is a general-purpose high-speed metal circular saw, especially suitable for high-speed precision cutting of various non-ferrous metal bars.
  2. Parameters such as cutting length and residual material length are input through the man-machine interface.
  3. It can meet the cutting of various non-ferrous metals with a maximum diameter of 120mm.
  4. It adopts Japan Mitsubishi servo motor and high-precision grinding grade ball screw to feed, the feeding length is accurate, the single feeding length can reach 800mm, and the cutting length of multiple feeding can be set without limitation.
  5. Use TCT toothed saw blade with outer diameter of 380mm and thickness of 2.6mm as cutting tool.
  6. The spindle speed has the function of step-less speed regulation, which can adapt to different materials.
  7. The cutting feed mode of the spindle box is 30-degree oblique cutting, driven by a servo motor, and the feed speed can be adjusted arbitrarily.
  8. The feeding system is designed with slow positioning function.
  9. The cutting clamp adopts a three-point universal clamping method, and there is no need to replace the clamping device for different material shapes.
  10. With no material shutdown function and automatic calculation shutdown function, it is convenient to manage.
  11. Equipped with a quasi-dry saw blade lubrication and cooling device to improve the service life of the saw blade.
  12. The equipment is equipped with an automatic lubrication device, which can regularly and quantitatively inject oil into parts such as lead screw guides.
  13. With manual and automatic functions.
  14. The entire working cycle: feeding, clamping, cutting, and discharging are all carried out automatically by CNC, and the manual is responsible for feeding and completing material collection.

Warranty service:

one year warranty.

The manufacturer guarantees to provide life-long paid maintenance services for the product.

High Speed Circular Sawing Machine HY-120NC: Features, Specifications, and Applications

When precision cutting and high-speed work are necessary, this machinery can be considered a Renaissance in modern engineering: The High Speed Circular Sawing Machine HY-120NC. Whether it’s for metal fabrication, automotive manufacturing, or industrial construction, the machine will be set to meet the most stringent requirements with turnaround time retention to impeccable accuracy. Let’s go into the deep details of what makes this machine special-the specifications as well as the areas of application. If you are looking for a product solution to save time and make good quality, then you have Come to the Right Place-continue reading to find out what sets the HY-120NC apart.
