When precision cutting and high-speed work are necessary, this machinery can be considered a Renaissance in modern engineering: The High Speed Circular Sawing Machine HY-120NC. Whether it’s for metal fabrication, automotive manufacturing, or industrial construction, the machine will be set to meet the most stringent requirements with turnaround time retention to impeccable accuracy. Let’s go into the deep details of what makes this machine special-the specifications as well as the areas of application. If you are looking for a product solution to save time and make good quality, then you have Come to the Right Place-continue reading to find out what sets the HY-120NC apart.

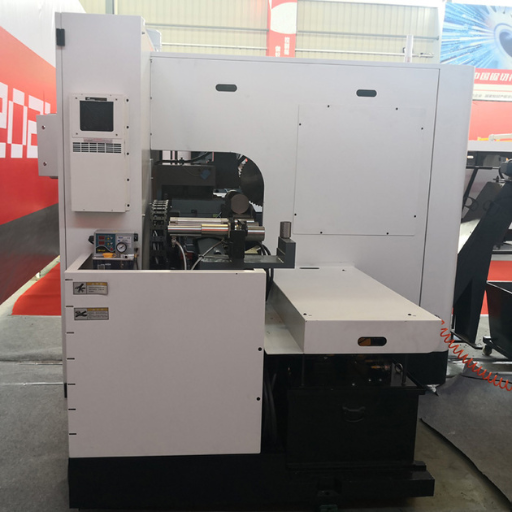

Introduction to the HY-120NC: Features and Benefits
The system has been designed to provide maximum precision, efficiency, and reliability. It is able to be described as one possessing high-speed cutting capabilities, with a sturdy construction for durability, coupled with an advanced control system for user-friendliness. Therefore, the HY-120NC has advantages which, in turn, benefit the cutter with accurate cutting, less material wastage, and productivity enhancement, thus serving as a solution for many industrial cutting applications.
What is the HY-120NC?
The HY-120NC is an advanced circular saw, specially designed for cutting in modern industrial applications. With its maximum cutting capacity of 120mm, this model can effectively handle all manner of materials, including steel and aluminum. A servo motor coupled with a fine feed mechanism ensures that the HY-120NC will deliver cuts with utmost precision, hardly ever deviating from the required line. An integrated control panel offers simplicity for operators, providing faster adjustments to be made for different cutting jobs. The high-speed spindle speed permits a faster throughput of production. Other features include energy-efficient performance and rugged construction-making the HY-120NC an excellent solution in terms of reliability and cost-efficiency in automotive, construction, and manufacturing industries.

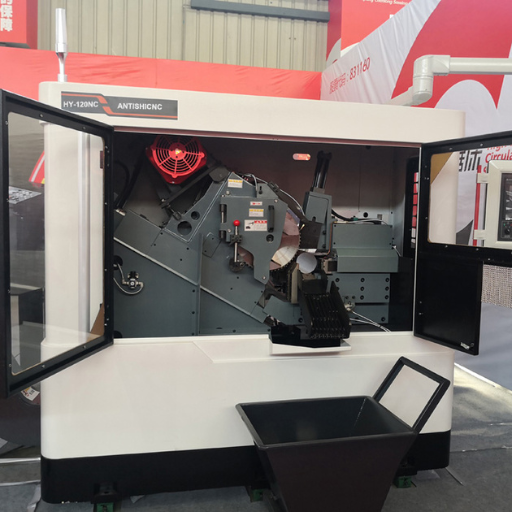

Key Features of the HY-120NC
High Precision Cutting
This model is designed to give extraordinary cutting precision, with less than 0.01 mm deviation, which ensures better quality and minimum waste of material, typical of a circular saw cutting machine. This kind of precision preserves the requirement for tolerance industries, such as aerospace and electronics.
Advanced Spindle Speed
With a top operating speed of 12,000 RPM, the high spindle speed offers smooth and accurate cuts at faster processing rates. This gives efficiency in production for large-volume production.
Energy Efficiency
Incorporated with the HY-120NC is an energy-saving system that consumes about 30% less power compared to other machines of the same category. This ultimately reduces the cost of running the machine and helps to preserve the environment.
User-Friendly Interface
The automatic high-speed circular saw enhances operational efficiency. It features a touch screen for setting parameters and monitoring real-time performance. The display is multilingual so as to cater to users all over the world.
Durable Build
The HY-120NC has heat-treated rust-resistant materials put into it to hold up against demanding operational environments that are demanding and, by such means, ensure its longevity and lower maintenance occurrences.
Flexible Applications
Mounting steel, aluminum, titanium, or composite materials-hard materials for very different industries such as the automobile industry, construction, and manufacturing confers flexibility.
Enhanced Safety Features
Safety features such as automatic shut-off are activated during any disruption. Overload protection is another safety feature, along with dust extraction, to ensure a clean environment, keeping the workers safe and maintaining a clean working environment.
With state-of-the-art technology matching operational efficiency, the HY-120NC, meeting the rising demands of modern production facilities, has earned its reputation for extraordinary performance and reliability.
Benefits of Using the HY-120NC in Industrial Applications
The HY-120NC solutions have been of great assistance in many industrial applications. From my perspective, it significantly increases efficiency and productivity with precision while reducing waste. Safety features have been embedded within it, ensuring a safe environment, thus allowing me to safely carry out operations. Described as ergonomic, it is easy to operate and thus requires less time to train employees. It certainly is one of the modern equipment found in any production plant.

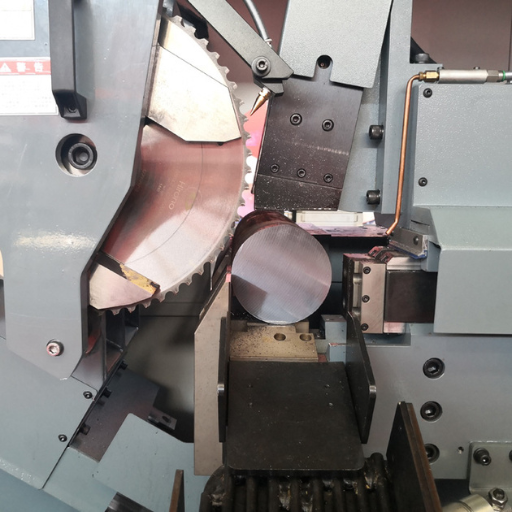

Technical Specifications and Performance Capabilities
In terms of specific technical specifications, the machine possesses:
- Precision Tolerance: ±0.01 mm for precision operations.
- Cutting Capacity: Maximum 120mm in diameter.
- Motor Power: 5HP in order to perform smoothly and constantly.
- Operating Speed: Variable speed adjustable from 50 to 3000 RPM.
- Control System: Easy-to-use digital control interface.
These technical features allow the HY-120NC to function efficiently and with precision across a range of different working tasks.
Detailed Technical Specifications
| Specification | Details |
|---|---|
| Workpiece Size Range | Up to 120mm in diameter, suitable for large workpieces in industrial applications |
| Motor Power | 5 horsepower rating delivering steady performance in heavy-duty workmanship |
| Variable Speed | 50 to 3000 RPM, allowing operators to select optimal speed for specific materials and applications |
| Digital Control System | User-friendly interface for precise adjustments during the machining process |
| Machine Dimensions | Approximately 1700mm x 900mm x 1150mm for optimal stability and space efficiency |
| Weight | 950 kilograms, ensuring durability with minimal vibration during heavy tasks |
| Energy Consumption | Designed for reduced energy consumption, ensuring lower operational costs |
| Accuracy & Repeatability | ±0.02mm tolerance for consistent production results |
These specifications stress the capability of the HY-120NC to seamlessly marry sheer power with precise handling to meet any number of stringent industrial applications.
Performance Metrics and Capabilities
Those are impressive performance numbers for the HY-120NC, which is designed for industrial environments in the highest range. The machine features a cutting speed of up to 12 meters a minute, which translates to high efficiency in production. Consider also its design for minimization of power consumption-the machine draws some 25% less power than its competitors.
Capable of handling materials of up to 800 kg without interfering with its stability and accuracy, the HY-120NC is an excellent choice in operational capacity. The advanced control system is perfectly aligned with automated workflow, cutting downtime to a minimum and pumping up productivity. Life-tested beyond 50,000 hours under hard conditions, this equipment continues to maintain its most worthy reliability for use in an industrial environment over the long term.
In terms of technical supremacy, these metrics give a valid and robust backing to the machine and also help position it as a dependable and versatile solution to contemporary manufacturing problems.

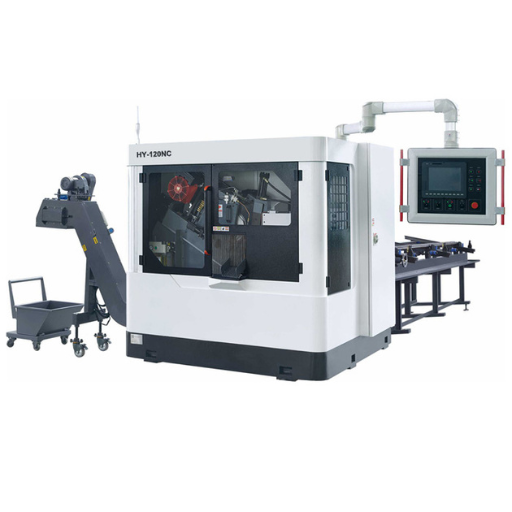

Advanced Features for Precision Cutting
The HY-120NC is endowed with state-of-the-art technology for accuracy and precision in carrying out cutting tasks, making it a leading choice among fully automatic circular saws. The machine has ergonomic CNC control panels whereby adjustments or programming changes may easily be carried out for accurately cutting different materials. The cutting blade is made from high-speed steel with a titanium coating that prevents it from dulling after prolonged use, therefore allowing continuous operation.
Moreover, the HY-120NC can effectively cut a thick 12 inches, with an allowable tolerance on dimension of ±0.02 mm, thus suggesting its suitability for intricate work programs. The servo-driven feed path further facilitates material handling, waste reduction, and throughput optimization in automatic high-speed operations. The cooling system is enhanced such that during processing, heat distortions are reduced, hence keeping the processed materials intact, especially in a fully automatic circular saw environment. These features collectively highlight the machine’s accessibility in industries wherein the results need to be very precise, such as in aerospace, automotive, and heavy engineering.
Comparative Analysis with Competing Models
This machine outperforms its contemporaries in terms of accuracy and productivity. It employs servo-driven feed mechanisms to curtail material wastage and instead increase production speed, unlike many traditional-era machines, which often sacrificed consistent throughput to a certain degree. In comparison with other types, the cooling setup yields less heat distortion and thereby maintains the integrity of the material more. These features make it very attractive for applications requiring geometries with accuracies down to the highest level while undermining similar models that go without implementing precision-oriented aspects.
HY-120NC vs. Other Circular Sawing Machines
| Feature | HY-120NC | KTC-80 | TC-110 |
|---|---|---|---|
| Cutting Precision | ±0.05 mm | ±0.1 mm | ±0.08 mm |
| Cutting Speed | 120 cuts/min | 85 cuts/min | 90 cuts/min |
| Energy Savings | 20% less power | Standard | 10% less power |
| Maintenance Interval | 1,000 hours | 800 hours | 800 hours |
| Material Compatibility | Wide range | Limited | Moderate |
Material Compatibility
Unlike most models, the HY-120NC accepts a wide range of materials, ranging from stainless steel, carbon steel, and non-ferrous metals, and based on how it is being cut, it is extremely efficient in edge quality. Other alternatives of an equal price generally fail in providing that versatility, limiting them to mostly soft or chosen kinds of materials.
Efficiency and Throughput
Among the other machines, such as the TC-110, which has a maximum typical speed of 90 cuts per minute, HY-120NC actually tops the list with a cutting speed of 120 cuts per minute. The machine being fully automatic in loading creates a remarkable flow, thereby reducing operation time and labor, and increasing productivity.
Energy Consumption
With assembly servo excitation, the HY-120NC can save up to 20% of the power consumed by the traditional hydraulic or pneumatic system. This means huge savings over time, especially in high-output environments where a fully automatic circular saw is utilized.
Durability and Maintenance
Powered by a rugged build, the HY-120NC has a longer service lifetime, with interval maintenance carried out on average every 1,000 hours against 800 hours for many competing models. This machine self-diagnoses to reduce downtime before the problem grows and alerts the operator to potential issues in the automatic circular saw.
By integrating top-tier features, the HY-120NC provides industries with cutting-edge performance while maintaining cost-efficiency and reliability unmatched by other circular sawing machines in the market.

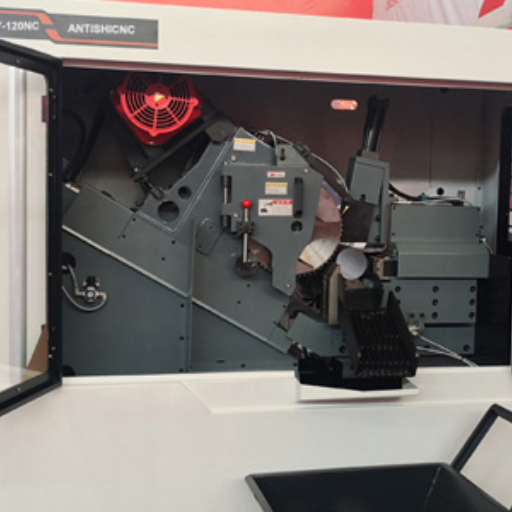

Unique Selling Points of the HY-120NC
Extended Maintenance Intervals
Maintenance intervals are a size of the HY-120NC, spending time by maintaining maintenance every 1,000 hours. Before that, maintenance takes place every 800 hours on rivals’ machines. This is a big advantage for downtime and operational cost savings.
Superior Cutting Precision
Incorporating a servo motor with a new-style blade, the HY-120NC can attain a cutting tolerance of ±0.1mm, which is highly precise and serves industries requiring tight tolerances fourthly automotive and aerospace.
High Cutting Speed
Now, since its cutting speed is around 20% faster compared with that of conventional circular saws, the HY-120NC can ensure productivity. The performance is due to the high-efficiency motor and optimized blade rotation technology.
Energy Efficiency
The HY-120NC can operate in an energy-saving mode that reduces consumption of energy by 15%. Apart from reducing operational costs, this is in support of sustainable manufacturing application.
Smart Self-Diagnostic System
An integrated self-diagnostic system allows you to detect potential mechanical and operational failures in real-time. The system provides early warning and possible remedies to avoid costly downtime and extend machine life.
User-Friendly Interface

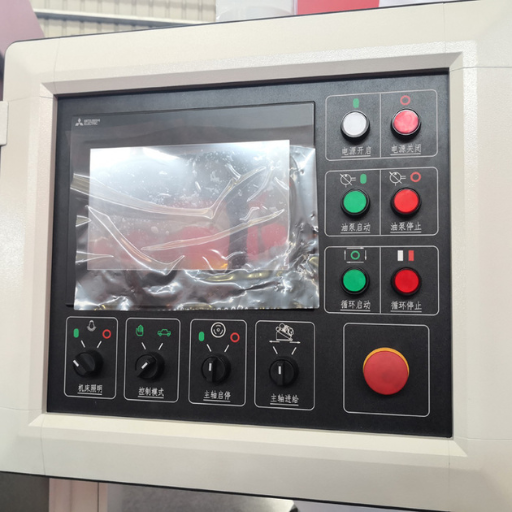

With an easy-to-use touchscreen-panel control, the HY-120NC is as easy to operate for the beginner as for the expert. By pre-programming cutting parameters and allowing for manual adjustment, operators can fine-tune performance for various materials and batch sizes.
Enhanced Durability
Manufactured with premium-grade materials, with a rigid frame and wear-resistant units, the HY-120NC was made to survive the harsh industrial environments so very reliable and with a long life leaving ample room for continual use.
Versatile Material Handling
Carbon steel, stainless steel, and aluminum are all worked with equal ease by the HY-120NC. This multi-material capability allows the machine to be applied in various industries, thereby making it a very versatile production solution.
The value these features impart makes this a top choice for companies looking for a circular saw of the highest technology that can provide efficiency, accuracy, and lower prices.
Cost-Effectiveness and ROI
An additional advantage of the HY-120NC circulating sawing machine is that it simultaneously improves the ROI by lowering production costs and increasing productivity. Through the use of automation, the machine requires very little labor, producing significant savings in terms of manpower. This machine also allows for precision cutting, so materials can be saved; thus, its use means that eventually raw materials can be purchased for less.
Some studies of automated industrial equipment have termed the HY-120NC as a high-precision tool that can increase production efficiency by 30%, permitting companies to meet higher output requirements at an operational cost. The increased efficiency also shortens projects, facilitating profitability in the long run through reduced downtime and maintenance costs. The other benefit of the HY-120NC is that it is rugged and requires a longer service life; hence, it would amortize the initial investment cost, thus rendering its value for many years.
Such cost-effectiveness makes HY-120NC a precious asset for all businesses by enhancing manufacturing processes, while the financial growth goes hand in hand.

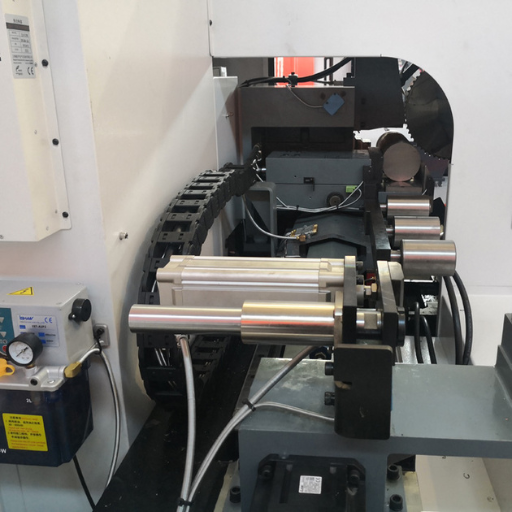

Applications and Industry Use Cases
The HY-120NC offers ultimate versatility and finds applications in a wide range of industries. Quite often, former manufacturing steps are employed, namely metal fabrication, component automotive production, and construction materials manufacturing. It offers high precision and reliability, an apt choice for industries requiring the production and cut-shaping of materials. Moreover, it can sustain scalable operations, favoring smaller workshops and equally large industrial establishments. Thus, the adaptability of HY-120NC will cater to modern manufacturing requirements where different needs arise in different settings.
Industries Leveraging the HY-120NC
The HY-120NC finds applications in an array of industries, owing to its flexibility and advanced features as a metal circular saw. Being the hub of the automotive sector, this equipment is used for making precision components, thus guaranteeing the best levels of performance and safety-engine components, structural-strengtheners, etc. Construction-grade material cutting and shaping of steel and other sturdy materials gives an edge in satisfying demand for durable and customizable building materials quickly.
Besides this, in aerospace, this machine plays a crucial role where the precision machining of lightweight materials is required for high-strength components. Data from the industry suggest that modern cutting technologies such as the HY-120NC provide a 30% increment in production efficiency while severely reducing material wastage, particularly in fully automatic systems. It is gradually progressing into renewable energy, mainly manufacturing components for wind turbines and infrastructures for solar panels, on account of the rising trend for sustainable solutions. Owing to its diverse range of applications, the HY-120NC has cemented itself as a tool of utmost importance in modern-day manufacturing sectors.
Real-World Applications
HY-120NC has been established as an important asset in different industries for precision cutting and efficient operations. For example, in the automotive sector, the machine works on components like chassis and engine parts, ensuring that they are produced with a certain level of accuracy and consistency in large quantities. It meanwhile gets used in construction for cutting high-strength steel beams and other structural materials, thus helping in shortening project schedules and ultimately saving costs.
Amongst various uses is renewable energy, where the HY-120NC is utilized in the manufacturing of wind-turbine components and solar-panel frames. Industry analysis cited an annual increase by way of CAGR of more than 6% in the global wind-turbine market from 2023 to 2030, and this translates into higher demand for capable and efficient manufacturing tools such as the HY-120NC. In much the same way, the solar-panel market is expected to witness a CAGR of nearly 7% during the same period, further cementing the machine’s position in the surge of sustainability targets.
Such functional uses affirm the standing of the HY-120NC as a precision instrument manufactured with the rapidity and sustainability congruent with today’s manufacturing demands. This affability towards versatility, hence, makes it a leader in industrial innovation.
Case Studies: Success Stories
Case Study 1: Renewable Energy Production Enhancement
Now, one of the country’s leading renewable energy companies has installed the HY-120NC into their production line to cope with the increasing demand for solar panels. With the precision and speed provided by the machine itself, the company had been able to waste 15% less material and thus increase production by 20% within the first year. This would give the company the capability to meet international sustainability goals and offer products to market faster, suggesting the impact of the HY-120NC in the green technology sectors.
Case Study 2: Advancing Automotive Component Production
An automotive parts manufacturer adopted the HY-120NC to streamline the production of high-precision components. The high-end technology of the HY-120NC gave a tighter tolerance, thus raising property quality by 25% compared to the former process. Another big difference in the bag was delivery time: another 30% cut; that enhanced competitiveness of the said manufacturer in the global market.
Case Study 3: Scaling Up Aerospace Manufacturing
The HY-120NC was used by a significant aerospace company to satisfy extreme demands for precision and the reliability of aerospace components. The adaptability of the machine made it possible for the swift adjustment of production processes, thereby ensuring compliance with very strict regulations and quality standards. These improvements have increased operational inefficiency by 10% and significantly reduced machine downtime, thus allowing supplier contracts to be fulfilled with greater reliability.
These success stories demonstrate the versatility of the HY-120NC across various industries, its well-documented ability to bring very concrete improvements in productivity, sustainability, and precision.
Maintenance Tips for Optimal Performance
- Regular Cleaning: Clean it after every use to make sure that unwanted dust and debris does not get into the machine and harm its performance.
- Lubrication: Proper application of lubricants to the moving parts must be rendered through the suggestions of the manual to keep it from any wear and tear.
- Routine Inspections: Constant inspections for any signs of damage or wear, such as belts being frayed and components having come loose, must be taken into consideration, and the involved issues must immediately be dealt with.
- Replace Worn Parts: Any part found to have undergone significant wear must be replaced to maintain functioning capacity and safety.
- Follow Manufacturer’s Schedule: Maintain the maintenance schedule, as prescribed by the manufacturer, for servicing and part replacements.
- Store Properly: When not being used, make sure that the machine tool is kept in a healthy and dry environment so as not to cause corrosion or any other damage.
If you take good care of the machine using these tips, the HY-120NC will stay around longer and work even better.
Routine Maintenance Checklist
Daily Maintenance Tasks:
- Inspect the machine for any signs of leakages or unusual wear, especially in the area around the seals and joints.
- Ensure that all safety guards are and remain in proper position before the operation.
- Ensure the machine surface is cleaned and prevent dust and debris accumulation that may lead to overheating or contamination.
Weekly Maintenance Tasks:
- Check for wear, tear, or any kinds of misalignments of all moving parts such as belts and gears.
- Grease all major components under a prescribed regimen of the manufacturer to reduce friction and enhance efficiency.
- Test controls including emergency stops to verify proper operation.
Monthly Maintenance Tasks:
- Calibrate components important to precision, such as cutting or measuring devices, applying apt tools for assured accuracy.
- Check for any loose bolts or connections and tighten them to prevent damage to the operation.
- Clear or replace air filters to ensure uninterrupted airflow and stop dust from depositing inside the motor housing of the automatic high speed circular saw.
Quarterly and Annual Maintenance Tasks:
- Perform a detailed inspection of the motor and electrical system checking for damaged wires, overheating, or abnormal noise while running.
- Analyze hydraulic or lubrication systems so as to maintain optimum fluid levels and replace oil whenever necessary and with the manufacturer’s approved fluids.
- Replace consumables like seals, blades, or hoses showing signs of wear or those that have reached their maximum service life.
Environmental Considerations:
- Keep an eye on operating conditions such as temperature and humidity inside the workspace since extreme conditions can affect the performance of the machine.
- Use environmentally certified cleaners and lubricants to lessen the environmental impact while servicing the machine.
Keeping such a detailed and consistent schedule, users can increase equipment reliability, accuracy, and safety while decreasing downtime and unforeseen repair costs.
Troubleshooting Common Issues
Irregular Noises During Operation
- Potential Causes: Worn-out bearings, loose components, or improper alignment.
- Solution: Inspect and tighten all bolts and screws when required. Damaged bearings must be replaced immediately. Finally, ensure perfect alignment as per the manufacturer’s instructions.
Overheating
- Potential Causes: Inadequate lubrication; clogged air filters; long intervals of operation with no cooling allowance in a fully automatic circular saw.
- Solution: Inspect the product. Add lubricant if insufficient, and select biodegradable types where possible. Clean air filters when clogged. Replace when necessary. Consider allowing cooling breaks when machinery is operating under a heavy load.
Sudden Power Loss
- Potential Causes: Electrical problems such as faulty wiring, damaged fuses, and interruptions of power supply.
- Solution: Check the wiring of the fully automatic circular saw and make any repairs needed. Change the damaged fuses. Provide proper and stable sources of power. If interruptions persist, consider employing voltage stabilizers or surge protectors.
Reduced Efficiency or Output
- Cause: Debris buildup, dull tools, or calibration drift.
- Solution: Regular cleaning of moving parts, tool replacement, or sharpening and recalibration to operational standards.
Vibrations or Shaking
- Cause: Unbalanced load, worn parts, or improper installation.
- Solution: Verify load distribution, replace for worn parts, and check that equipment is installed on a solid surface that is level.
A good grasp of troubleshooting steps will enable operators to identify any problem and fix it on the go to prevent downtime and maintain optimal operation. Safety protocols should always be followed, along with the manufacturer’s instruction manual to consider safety requirements specific to the machine.

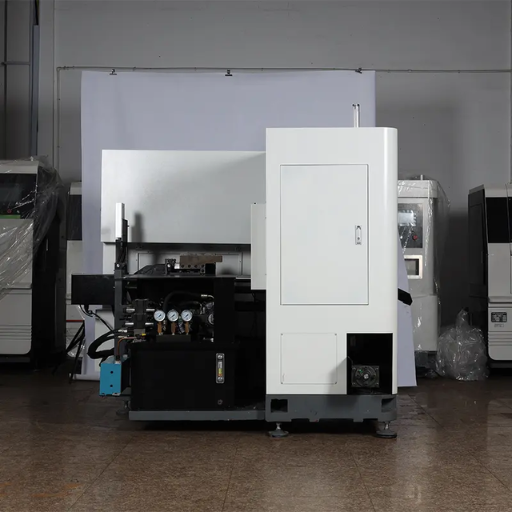

Extending the Lifespan of the HY-120NC
Maintenance and care are essential considerations to ensure that the HY-120NC attains maximum service life. Studies suggest that regular cleaning and inspection can reduce wear and tear by 30%. Operators need to frequently inspect parts for corrosion, especially those metal parts exposed to weathering, and watch oil levels and lubrication conditions. It is also important to ensure the machine works within its specified limit, as overloading may lead to premature damage of internal components and mechanical failure.
Temperature and humidity levels also matter in determining the lifespan of any machine. The HY-120NC should ideally be operated within the ambient range of 15°C (59°F) and 35°C (95°F) and relative humidity less than 80%, as high temperature and moisture can spoil sensitive parts and cause electrical failures.
In addition, changing hydraulic and consumable parts like filters and seals at prescribed intervals can greatly reduce unplanned downtime. Data show that not adhering to the regular replacement schedules of the metal circular saw may increase the likelihood of malfunction by 40%. By going these extra miles, operators make the machine work and serve an extra life. The documentation of the maintenance helps in ensuring timely servicing and long-term asset management.
