Top HY-300NC Circular Sawing Cutting Manufacturers and Suppliers in China

HY-300NC Circular Sawing Cutting

At ANTISHICNC, the HY-300NC circular sawing machines, designed for industries such as manufacturing and metal fabrication, are precision-driven, reliable, and safe. With a design crafted from advanced technology, it is engineered for high performance, offering customization options as desired by professionals.

Factory Sale HY-300NC Circular Sawing Cutting

  • The beds present a critical component of machine tool equipment. Made from high-strength HT350 cast iron and integrally cast, it exhibits high strength, rigidity, impact resistance, minimal deformation, and excellent shock absorption capacity. A significantly larger bed would result in a substantial increase in the rigidity, sawing stability, and reliability of the machine tool.

  • It is the action of the servo motor and a high-precision ball screw that combine to force and accurately drive the power head in a horizontal attitude. As a result, the clamped workpieces are cut swiftly and accurately. This system has come to be recognized as one of the best international sawing methods, thereby affording great stability, reliability, and continuity throughout the sawing process.

  • The power head consists of a gearbox, pulley, spindle motor, magnetic powder brake, and other essential components. The box frame of the gearbox is made of ductile iron (QT450-10) castings and features high-precision, ground-formed gears with a hardened bevel gear multi-stage transmission arrangement, ensuring smooth transmission and precise balancing.

Technical Proposal for Circular Sawing Cutting

Cutting capacity
Round bar    ●150 ~ 300 mm
Square bar    ▓150 ~ 220 mm
Round tube  ○150 ~ 300mm Wall thickness ≥ pipe outer diameter * 10% (∅150*10%=15)
Square tube    □150 ~ 220mm
Machine head spindle
Applicable to TCT tungsten carbide circular saw bladeØ960 x 4.2 mm
Saw blade rotation number20 ~ 50 rpm / Variable speed
Saw blade debris removerRound wire brush
motor
Spindle drive motor55kw
AC servo motor_feed mechanism7.0kw
AC servo motor_delivery mechanism5.0kw
Hydraulic drive motor10HP / 4p
Hydraulic device
Hydraulic drive pressure85 kg/cm2(8.5 MP a)
Hydraulic tank capacity150 liters
Air pressure device
Working air pressure4 ~ 6 kg/cm2(55 ~ 85 psi)
Fixed-size feeding (GFC) mechanism
End cutting length10~99mm
Residual length130+a (α is the length of a workpiece)
Feeding length800mm (single)
other
Weight / main machine + rack15500KGS

Standard Equipment&Optional Equipment

NO.Spare Parts DescriptionBrand
1Touch screenSiemens of Germany
2Logic controllerSiemens of Germany
3Feed servo motorSiemens of Germany
4Feed servo motorSiemens of Germany
5ContactorSiemens of Germany
6Thermal relaySiemens of Germany
7Solenoid valveTaiwan Oil Research Institute
8Oil pumpTaiwan Oil Research Institute
9Spindle servo motorShanghai Meishike
10Tool lubrication systemTaiwan Suncooler
11Automatic lubrication systemTaiwan ISHAN
12Main sealsTaiwan NAK
13Pneumatic componentsTaiwan AirTac
14Hydraulic componentsTaiwan Jiagang
15Ball screwTaiwan Hiwin
16Linear guideTaiwan Hiwin
17Toothed V-beltGates of the United States

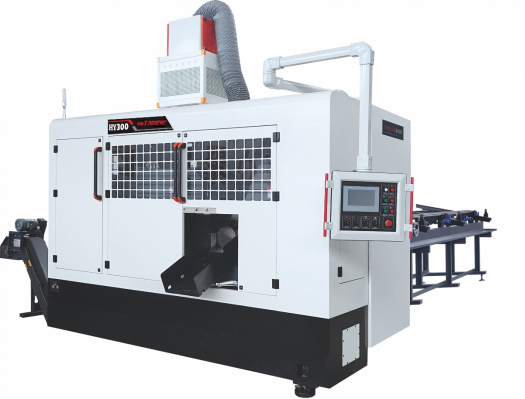

HY-300NC Circular Sawing Cutting Product Display Picture

Quality Assurance and After-Sales Service

The main functional advantages of the equipment:

  1. This equipment is a general-purpose high-speed metal circular saw, especially suitable for high-speed precision cutting of various non-ferrous metal bars.
  2. Parameters such as cutting length and residual material length are input through the man-machine interface.
  3. It can meet the cutting of various non-ferrous metals with a maximum diameter of 180mm.
  4. It adopts Japan Mitsubishi servo motor and high-precision grinding grade ball screw to feed, the feeding length is accurate, the single feeding length can reach 650mm, and the cutting length of multiple feeding can be set without limitation.
  5. Use TCT toothed saw blade with outer diameter of 560mm and thickness of 3.0mm as cutting tool.
  6. The spindle speed has the function of step-less speed regulation, which can adapt to different materials.
  7. The cutting feed mode of the spindle box is 30-degree oblique cutting, driven by a servo motor, and the feed speed can be adjusted arbitrarily.
  8. The feeding system is designed with slow positioning function.
  9. The cutting clamp adopts a three-point universal clamping method, and there is no need to replace the clamping device for different material shapes.
  10. With no material shutdown function and automatic calculation shutdown function, it is convenient to manage.
  11. Equipped with a quasi-dry saw blade lubrication and cooling device to improve the service life of the saw blade.
  12. The equipment is equipped with an automatic lubrication device, which can regularly and quantitatively inject oil into parts such as lead screw guides.
  13. With manual and automatic functions.
  14. The entire working cycle: feeding, clamping, cutting, and discharging are all carried out automatically by CNC, and the manual is responsible for feeding and completing material collection.

Warranty service:

one year warranty.

The manufacturer guarantees to provide life-long paid maintenance services for the product.

High Speed Circular Sawing Machine HY-300NC: Revolutionizing Metal Cutting in China

The High-Speed Circular Sawing Machine HY-300NC sets new standards for speed, precision, and reliability in China’s metalworking industry. With advanced features, it delivers unmatched performance for modern manufacturing. This blog examines how it enhances cutting speed, improves automation, and boosts productivity, ultimately shaping the future of metalworking. Stay tuned!
