Top Boring and Milling Machine Manufacturers and Suppliers in China

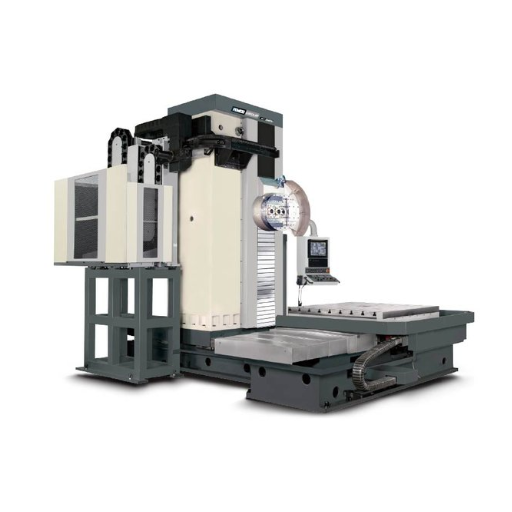

TK160T3 CNC Milling & Boring Machine Center

ANTISHICNC boring and milling machines produce excellent engineering results with precision, every time. The design of these machines requires harsh industry standards during their manufacture and constant performance on the most demanding projects.

Factory Sale TK160T3 CNC Milling & Boring Machine Center

  • XYZ-axis main gantry rail, spindle motors with power 30/37kW, equipped with a 2500×2500mm CNC turntable with one-thousandth-degree resolution and bearing capacity of 20t; with X/y/z/b four-axis gratings; fitted with FANUC 0I-MF (1) CNC system.

  • The horizontal milling and boring machine is a CNC machine tool imported with advanced foreign processing technology. After a process of improvements and refinements, the product now forms a relatively complete modular series.

  • This product has mature technologies, stable product quality, and its technical indicators and software and hardware configurations are at an advanced international level.

Technical Proposal for TK160T3 CNC Milling & Boring Machine Center

Description/Machine ModelUnitTK160T3
Motor spindle
Spindle motorkW30/37
Spindle speedrpm35-2000
Spindle speed changeGear
Spindle inner cone holeISO50（BT50）
W-axis diametermm160
Maximum spindle torqueNm3675
Scope of work
X-axis strokemm3000
Y-axis strokemm2500
Z-axis strokemm1500
W-axis strokemm900
Distance from spindle center to workbenchmm50-2550
Rotating ktable
Minimum rotation angle of table°0.001
Maximum load capacity of tablekg20000
Feed
Rapid feed rateX-axismm/min10,000
Y-axismm/min10,000
Z-axismm/min10,000
W-axismm/min4,000
Workbench speedrpm1
Cutting feed rateX-axismm/min6,000
Y-axismm/min6,000
Z-axismm/min6,000
W-axismm/min2,000
Minimum input unitmm0.001
Accuracy
X axis positioning accuracy/entire lengthmm0.025(Full closed-loop)
Y axis positioning accuracy/entire lengthmm0.025(Full closed-loop)
Z axis positioning accuracy/entire lengthmm0.020(Full closed-loop)
X axis repeated positioning accuracymm0.02
Y/Z/W axis repeated positioning accuracymm0.015
Others
Heightmm6000
Machine weight (approximately)kg40,500
CNC systemFANUC 0I-MF(1)
Tool magazine
Tool capacity24
Maximum tool weightkg25
Maximum tool lengthmm400
Maximum tool diameter (full tool)mm125
Maximum tool diameter (adjacent to empty tool)mm250

TK160T3 CNC Milling & Boring Machine Center Product Display Picture

Quality Assurance and After-Sales Service

  1. Since the final acceptance of the machine tool, all failures caused by quality problems will be guaranteed for one year free of charge.
  2. Since the final acceptance of the machine tool, the failure of other parts caused by quality problems will be guaranteed for one year free of charge.
  3. Since the final acceptance of the machine tool, we also guarantee active cooperation with the user to repair any failures caused by the machine tool’s quality, and cover free labor costs within one year.
  4. Lifetime guarantee to provide spare parts supply at preferential prices.

Warranty service:

one year warranty( 12 months since customer receive & use the machine).

The manufacturer guarantees to provide life-long paid maintenance services for the product.

CNC Milling & Boring Machine: Understanding the Future of Precision Machining

Precision and efficiency have modern manufacturing as their premise, and so CNC milling and boring machines are the utmost along this evolution. These advanced machines have essentially changed the approach to machining industries, allowing for precision, perfection, or consistency, and high productivity. But what separates these machines, and why are they seen as the future of precision machining? Whether you are a seasoned machinist, manufacturing professional, or just curious about the precision engineering world, this dive into CNC innovation guarantees intriguing information about the tools that will build tomorrow.
