Top Universal Milling Machine Manufacturers and Suppliers in China

XQ6432 SERIES Universal Swivel Head Milling Machine

There is no denying that ANTISHICNC universal milling machines are versatile! If you are machining components for the automotive, aerospace, or medical equipment industries, ANTISHICNC has got you covered.

Factory Sale XQ6432 SERIES Universal Swivel Head Milling Machine

  • The machine is equally good at surface milling, step planing, slope milling, and groove cutting, plus handling complicated curves, curved surfaces, and cam milling.

  • It offers stepless speed adjustment with automatic speed change with high torque at low speed, making it a handy processing tool for deep cuts or large-diameter holes.

  • Made of high-strength cast iron, the machine body and key components give excellent structural stability for long-term reliable performance.

Technical Proposal for XQ6432 SERIES Universal Swivel Head Milling Machine

ItemsXQ6432XQ6432AXQ6432BXQ6432C
Working area
Worktable size (L×W)1270x320mm1370x320mm1270x320mm1370x320mm
T slot (Width x No. x pitch)14x3x80mm
Max. load of table300kg
Table rotationoptional: ±45˚
Distance from horizontal spindle axis to table surface65-465mm
Distance from vertical spindle nose to table surface250-650mm
Travels
Worktable longitudinal travel (X)720mm820mm900mm1000mm
Worktable cross travel (Y)300mm（If with DRO:280mm）380mm（If with DRO:360mm）
Worktable vertical travel (Z)400mm
Ram travel460mm
Spindle
Horizontal spindle speed12 steps; 35-1500rpm
Spindle taper(Horizontal)7:24, ISO40
Motor power(Horizontal)3kW
Universal milling head spindle speed11 steps; 45—1660rpm
Spindle taper(Universal milling head)7:24, ISO40
Universal milling head swivel angel±360°
Motor power (Universal milling head)3kW
Feed
Rapid feed (X/Y/Z)1335/1335/1000mm/min
Feed range (X/Y)30-830mm/min
Feed range (Z)23-625mm/min
Others
Machine size (L×W×H)1720x1680x1860mm1820x1680x1860 mm1720x1680x1860 mm1820x1680x1860 mm
Net weight1850kg1900kg1900kg1950kg

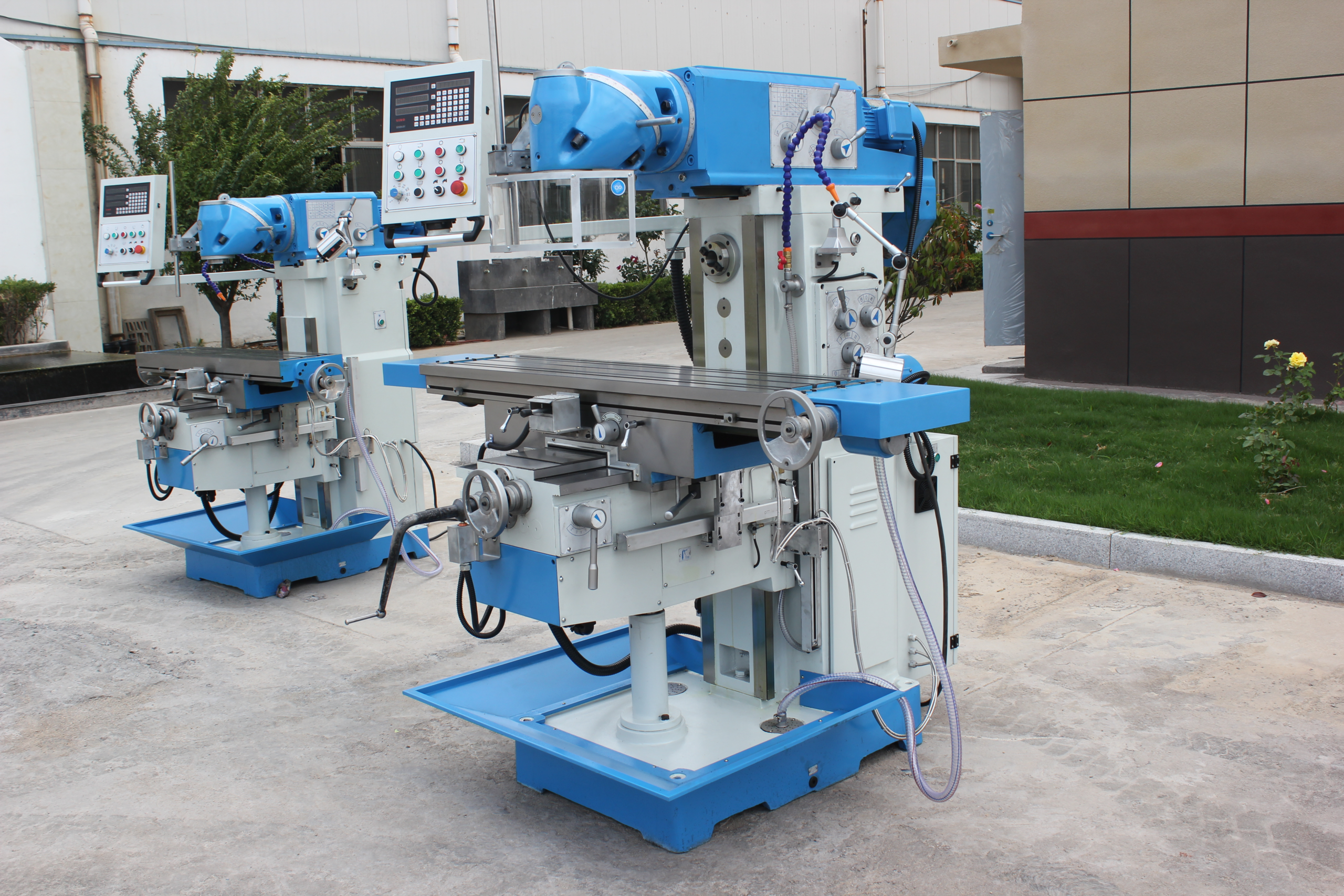

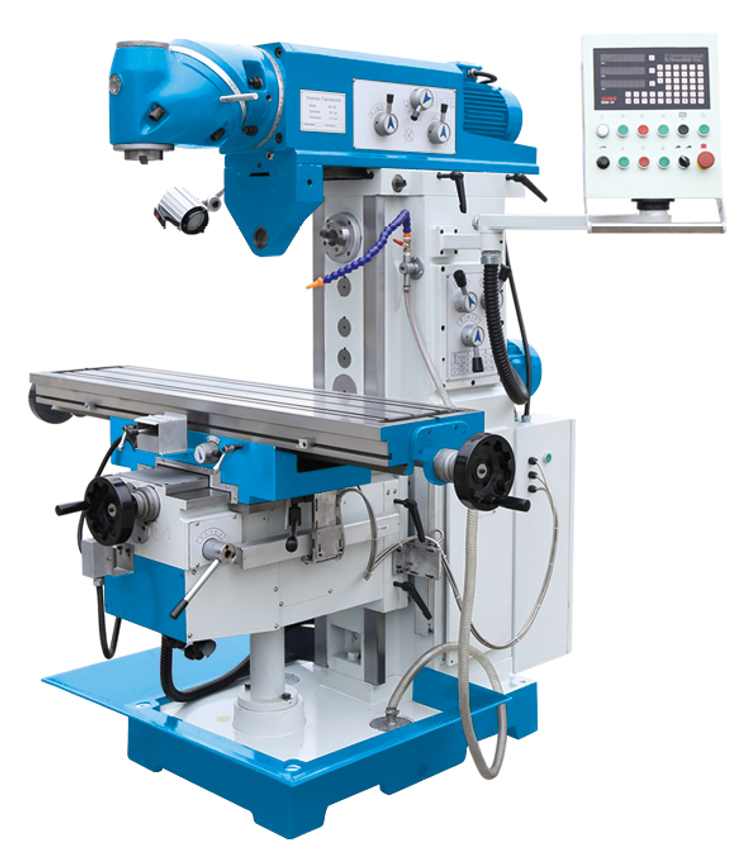

XQ6432 SERIES Universal Swivel Head Milling Machine Product Display Picture

Quality Assurance and After-Sales Service

  1. Since the final acceptance of the machine tool, all failures caused by quality problems will be guaranteed for one year free of charge.
  2. Since the final acceptance of the machine tool, the failure of other parts caused by quality problems will be guaranteed for one year free of charge.
  3. Since the final acceptance of the machine tool, we also guarantee active cooperation with the user to repair any failures caused by the machine tool’s quality, and cover free labor costs within one year.
  4. Lifetime guarantee to provide spare parts supply at preferential prices.

Warranty service:

one year warranty( 12 months since customer receive & use the machine).

The manufacturer guarantees to provide life-long paid maintenance services for the product.

Swivel Head Milling Machine: The Universal Tool for Precision Milling

Presently, the swivel head milling machine has taken machining to a higher level with its multifarious capabilities and precise capabilities for numerous applications. In the realm of showcasing an exquisite tool that can bring about fine results to intricate components meant for industrial uses and custom manufacturing for somewhat distinct projects, the swivel head milling machine works as an all-in solution for exquisite results. Thanks to its capacity to incline and rotate, machinists and engineers are free to work on designs that otherwise require greater efforts.
