Top Vertical Milling Machine Center Manufacturers and Suppliers in China

VMC1160 Vertical Milling Machine Center

ANTISHICNC is a pioneering manufacturer of vertical machining centers, infusing them with the latest technology, precision engineering, and unrelenting performability. Having once been an inventor in the realm, ANTISHICNC manufacturers are considered by industries as a standard of quality.

Factory Sale VMC1160 Vertical Milling Machine Center

  • Multi-Functional Machining Capabilities:Performs drilling, milling, boring, expanding, reaming, tapping, and machining of complex parts like disks, plates, shells, cams, and molds in a single clamping.

  • Precision and Stability:Large components (bed, worktable, slide, column, spindle box) are made of resin sand castings, treated twice for stress elimination, ensuring long-term accuracy and stability.

  • Advanced Axis and Spindle Design:X, Y, and Z axes are controlled by linear rails for precise movement.Spindle driven by a servo motor, ensuring high performance and reliability.

  • Safety Features:Z-axis servo motor includes an automatic brake function to secure the motor shaft during power outages, ensuring safety.

Technical Proposal for Vertical Milling Machine Center

SpecificationsUnitsVMC1160
Left and right travel (X)mm1100
Front and rear travel (Y)mm600
Up and down stroke (Z)mm600
Distance from spindle center to column guide railmm650
Distance from spindle end face to worktablemm120-720
Workbench size (X*Y)mm1200*600
Maximum load of workbenchkg1000
Workbench T-slotmm5-18x100
Spindle speed (belt type)rpm8000(Optional :10000rpm)
Main motor power/30min powerKW11/15
Spindle maximum output torqueN.m95
Spindle bore taperBT40
Spindle transmission mode8YU timing belt
XYZ axis servo motor torqueNm25/25/32
XYZ axis servo motor powerKW2004/4/5
XYZ direction motor connection methodDirect Connect
X/Y/Z linear rail model45/45/45
X/Y/Z screw model4012
Tool magazine formDisc type
Tool magazine formDisc type
Knife selection methodSupport Pre-select the knife and choose the knife nearby
Tool magazine capacityATC24
Maximum tool weightkg8
Maximum tool lengthmm300
Maximum tool diametermmMax.diameter of tools that can be placed in the tool magazine without tools:φ160
Tool changing times1.55
Tool magazineTool holder modelMAS403, BT40
Draw modelP40T-I
X/Y/Z rapid movement speedm/min30/30/24
cutting feed ratemm/min1-10000
X/Y/Z positioning accuracymm±0.006/±0.006/±0.006
X/Y/Z repeat positioning accuracymm±0.005/±0.005/±0.005
Minimum setting unitmm0.001
power supplyKVA18
Machine tool net weightKg6500
Overall dimensions (L*W*H)mm3100*2490*2430

Components of Vertical Milling Machine Center

Spindle
Spindle

The spindle can achieve stepless speed regulation within its speed range. The spindle is controlled by a built-in encoder in the motor, enabling spindle orientation and rigid tapping functions.

Tool magazine
Tool magazine

The tool magazine can be of 16 or 24 high-speed automatic tool changes. The tool changing is accurate, fast, and efficient. It has been tested and used for millions of operations fulfilling reliability requirements; it can be equipped with either a type hat or type round. Damping structures are included in the disc-type and the hat-type tool magazines to absorb shock during movement, thus enhancing the tool magazine service life.

Transmission
Transmission

The screws and nuts are processed, ground, assembled and quality controlled in a constant temperature workshop to ensure their high-precision stability.

Cutting cooling system
Cutting cooling system

The end face of the spindle box is equipped with a cooling nozzle, which can be water-cooled or air-cooled, and can be switched at will. The cooling process can be controlled through M code or control panel.

Pneumatic system
Pneumatic system

The pneumatic triplex can filter impurities and moisture in the air source to prevent impure gas from damaging and corroding machine tool components. The solenoid valve group is controlled by PLC program to ensure that spindle tool unclamping, spindle tool clamping, spindle air cooling and other actions can be completed quickly and accurately.

Lubrication system
Lubrication system

The guide rails, ball screw pairs and support bearings all use centralized automatic thin oil lubrication. Each node is equipped with a quantitative oil separator, which regularly and quantitatively injects oil into each lubrication part to ensure that each sliding surface is evenly lubricated, effectively reducing friction resistance.

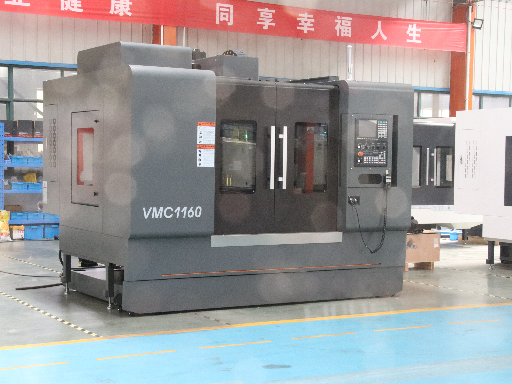

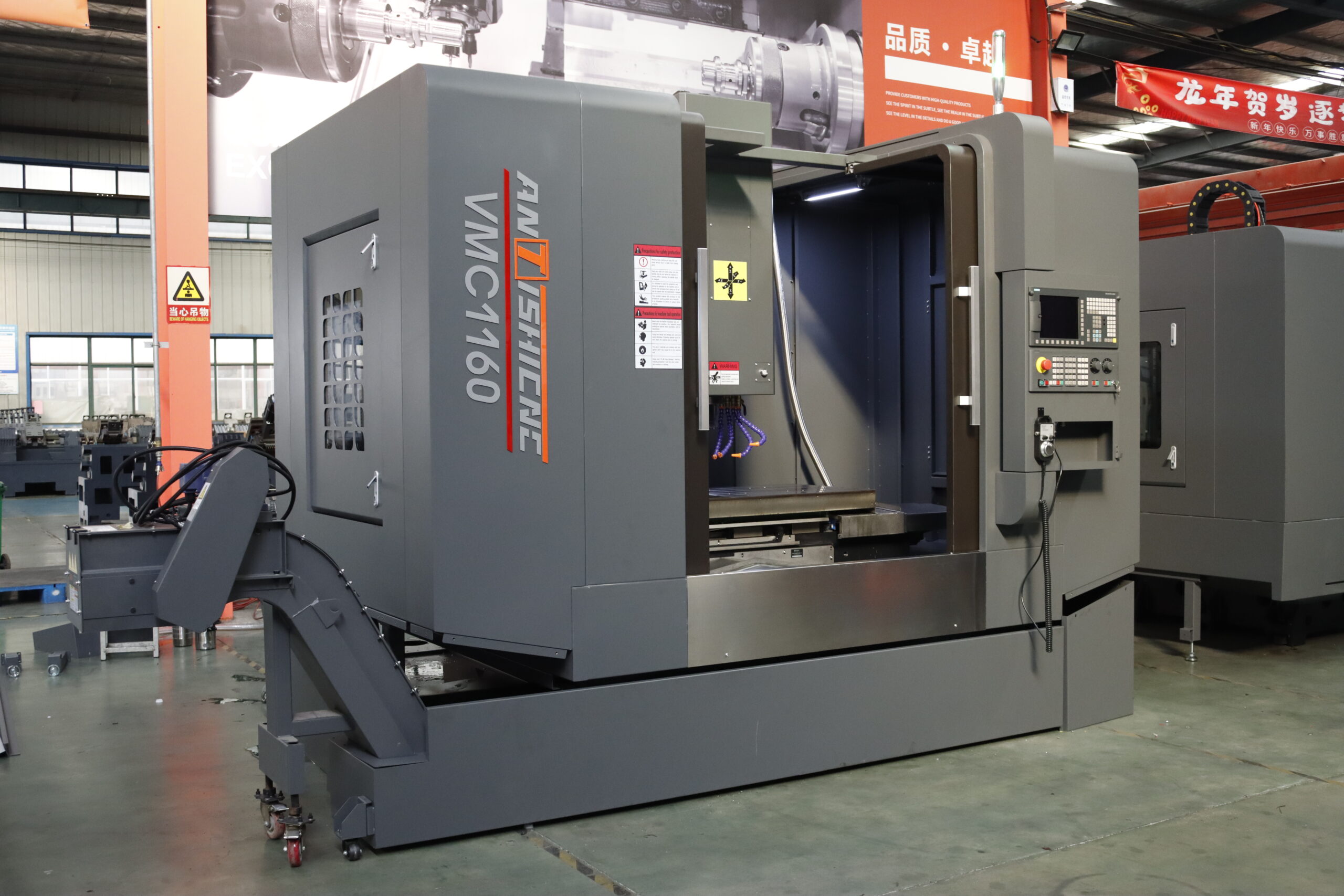

vMC1160 Vertical Milling Machine Center Product Display Picture

Quality Assurance and After-Sales Service

  1. Since the final acceptance of the machine tool, the machine tool spindle, tool magazine, automatic tool changer, X/Y/Z axis ball screw, all failures caused by quality problems will be guaranteed for one year free of charge.
  2.  Since the final acceptance of the machine tool, the failure of other parts caused by quality problems will be guaranteed for one year free of charge.
  3. Since the final acceptance of the machine tool, we also guarantee to actively cooperate with the user to repair the failure caused by the quality of the machine tool, and free labor costs within one year.
  4.  Lifetime guarantee to provide spare parts supply at preferential prices.

Warranty service:

One year warranty( 12 months since customer receive & use the machine).

The manufacturer guarantees to provide life-long paid maintenance services for the product.

CNC VMC 1160 Vertical Machining Center - Precision Machine

In precision engineering, efficiency and accuracy are paramount. The CNC VMC 1160 Vertical Machining Center stands out as a modern solution for today’s manufacturing demands. Designed for precision, speed, and performance, it enhances production processes. Whether you’re a seasoned machining expert or new to the CNC world, discover how the 1160 VMC can revolutionize your operations and boost productivity. The following sections highlight its key features, applications, and benefits, showcasing why it’s a global favorite among manufacturers.
