Top CNC Vertical Turning Milling Machine Center Manufacturers and Suppliers in China

CNC Vertical Turning Milling Machine Center

ANTISHICNC CNC vertical turning milling machines stand for machining precision, reliability, and efficiency for both intricate components and large-scale production, thus enhancing manufacturing performance.

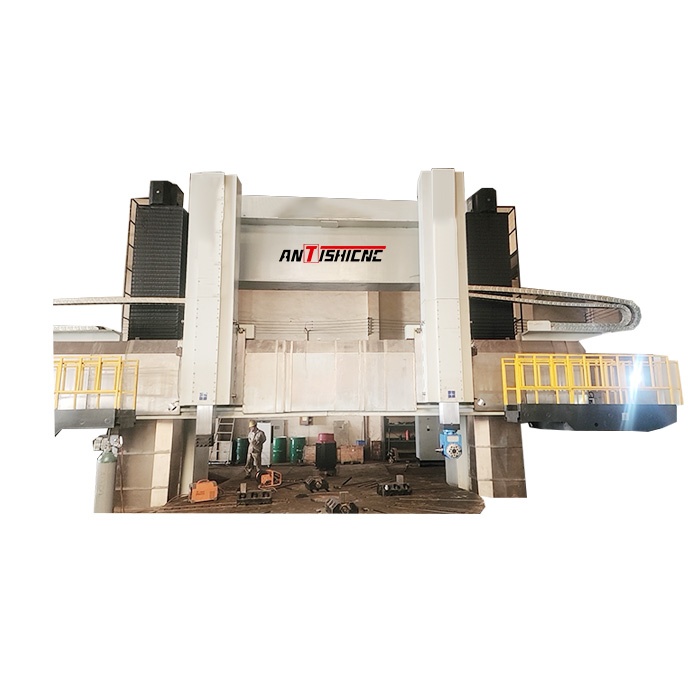

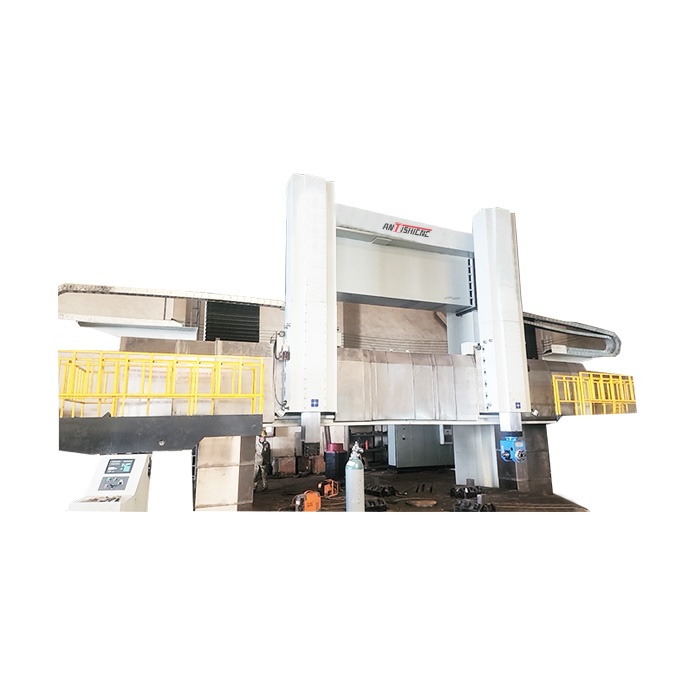

Factory Sale VSL630 CNC Vertical Turning Milling Machine Center

The CNC double-column turning and milling compound lathe is a state-of-the-art machine built with precision, efficiency, and versatility in mind.
By positioning machine tools at a slant, the design trims the overall footprint on the shop floor, making it easier to fit more equipment into tighter areas.
With the worktable having a large space and very high load-bearing capabilities, it supports heavy loads, thereby providing an excellent work surface for large workpieces or multi-station fixtures. Batch processing, therefore, is a brilliant option for this machine, which performs superbly for very demanding manufacturing operations.

Technical Proposal for VSL630T CNC Vertical Turning Milling Machine Center

Name	Unit	630T
Maximum turning diameter	mm	6300
Maximum rotation diameter	mm	6380
Maximum processing height	mm	4000
Workbench diameter	mm	5700
Workbench speed range (turning)	r/min	0.1-32
Milling and indexing workbench speed	r/min	0.02-1
Milling spindle motor power (AC)	kw	31
Milling spindle speed range (stepless)	r/min	20-2000
Milling spindle taper		7:24
Milling spindle toolholder specifications		BT50
Workbench maximum torque	KN.m	200
Tool holder cutting force	KN	50/40
Tool holder slide maximum stroke	mm	2000
Tool holder horizontal maximum stroke	mm	-20~3550
Slide and tool holder feed range	mm/min	0.1~1000
Slide and tool holder rapid movement range	mm/min	3000
Right and left tool holder slide cross-sectional dimensions	mm	320x320
Beam maximum stroke	mm	3550
Beam lifting speed	mm/min	350
Beam lifting motor power	kw	30
Main motor power	kw	110
Total electrical capacity	KVA	200
Machine weight (approx.)	T	198

Factory Sale VSL160T CNC Vertical Turning Milling Machine Center

The Single-Column Turn-Mill Compound Machine is one of modern high-precision, multi-store tools designed to maximize performance.
It comes with a single-column design with a heavy large crossbeam and ram, providing excellent stability and precision, the perfect tool for those industries requiring high-precision machining.
Four operations are integrated into one single carpentry machine: turning, milling, drilling, tapping; this makes manufacturing simple, even for the most complex workpieces, raising productivity and reducing setup times.

Technical Proposal for VSL160T CNC Vertical Turning Milling Machine Center

Item		Specification
Machining Range
	Maximum Workpiece Height	1200mm
	Maximum Workpiece Mass	8000kg
Travel
	Z-axis Travel	1000 mm
Worktable
	Maximum C-axis Speed	2 r/min
	Speed Stages	2 Mechanical Gears + Stepless
	Main Motor Power	37 kW
Milling Spindle
	Spindle Motor Power	19 kw
	Tool Holder Specification	BT50
	Pull Stud Specification	P50T-I (MAS403)
Machining Capacity
	Number of Crossbeam Positioning Stages	7
	Maximum Crossbeam Travel	750 mm
	Rapid Traverse Speed (X/Z)	9/9 m/min
Speed
	Tool Change Mode	Automatic
Tool Magazine
	Number of Tool Positions	12
	Positioning Accuracy (X-axis)	0.025 mm/1000
Machine Tool Accuracy
	Positioning Accuracy (Z-axis)	0.025 mm/1000
	Repeat Positioning Accuracy (X-axis)	0.010 mm/1000
	Repeat Positioning Accuracy (Z-axis)	0.010 mm/1000
	Positioning Accuracy (C-axis)	8
	Repeat Positioning Accuracy (C-axis)	5
	Power Supply Capacity	90
Others
	Air Supply/Pressure	500L/min 68bar
	Coolant Tank Volume	600
	Net Machine Tool Weight (Approx.)	24000

CNC Vertical Turning Milling Machine Center Product Display Picture

CNC Vertical Lathe Machine: Understanding Vertical Turning Centers

In the world of precision engineering, CNC machines have cemented themselves as a favorable manufacturing tool. Designed to perform sophisticated and demanding turning operations, these machines were developed to ensure utmost efficiency and precision. So, what is it that truly distinguishes these vertical turning centers from horizontal ones? How do vertical turning centers operate, and why do so many industries, ranging from aerospace to automotive, prefer them? This article examines the primary features, advantages, and applications of CNC vertical lathe machines, offering a comprehensive overview for those seeking to broaden their understanding of this crucial technology.
