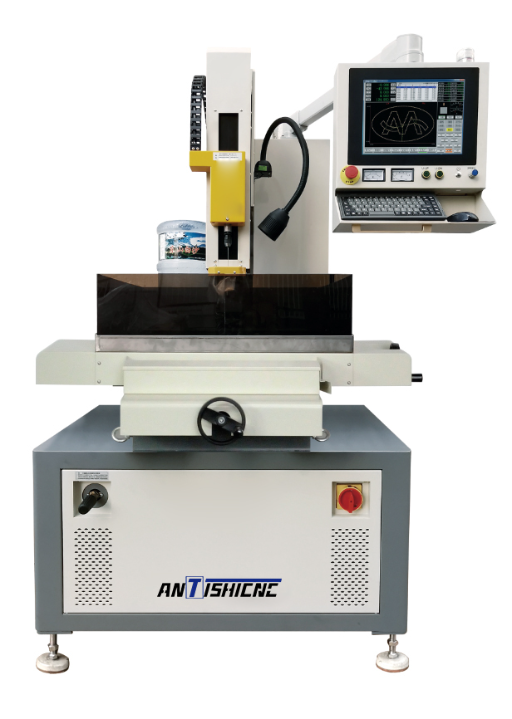

MS-DC430A EDM Drilling Machine
ANTISHICNC is the home of some of the best, most modern, and reliable manufacturers of EDM drilling machines. They are known for precision engineering, innovative designs, and top quality.

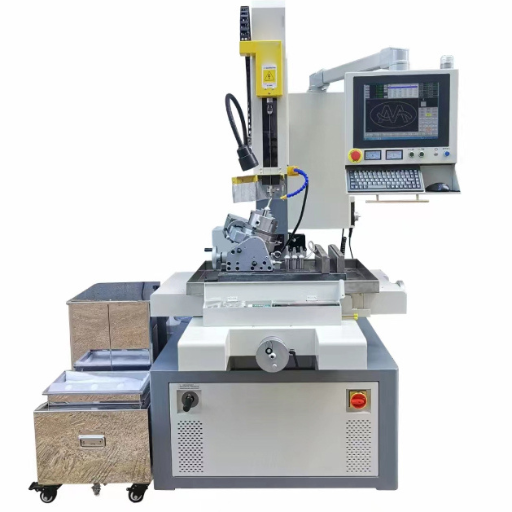

Factory Sale MS-DC430A EDM Drilling Machine EDM Drilling Machine
Technical Proposal for EDM Drilling Machine
| NO. | Specifications | MS-DC430A |
|---|---|---|
| 1 | Electrode diameter(mm) | Φ0.1-Φ3.0 |
| 2 | W axis/ Machine head travel(mm) | 250 |
| 3 | Z axis/ Spindle servo travel(mm) | 380 |
| 4 | Max. speed of spindle(mm) | 1500 |
| 5 | Spindle rotation speed(rpm) | 0-200 adjustable |
| 6 | Worktable size(mm) | 440*320 |
| 7 | X*Y travel(mm) | 400*300 |
| 8 | Max distance from guide to working table（mm） | 300 |
| 9 | Max. worktable load（kg） | 300 |
| 10 | Overall dimension of machine（W*L*H） | 1000*1000*2000 |
| 11 | Machine weight（kg） | 750 |
| 12 | Positioning accuracy X,Y(mm) | X.Y≤0.04/300 |
| 13 | Repositioning accuracy XY(mm) | X.Y≤0.04/300 |
| 14 | Max feed speed XY（mm/min） | ≤1000 |
| 15 | Control axes | X、Y、Z three axis |
| 16 | Machining axis | Z axis |
| 17 | Max. working current（A | 30 |
| 18 | Machining speed（mm/min） | 30-60 |
| 19 | Max. input power（KW） | 4.5 |
| 20 | Min. wear of electrode | ≤0.8 |
| 21 | Working liquid supply device | Pneumatic pump + electrical pump |
| 22 | Display axis | Three axes |
| 23 | Capacity（L） | 110 |
| 24 | Filtering | Carbon steel paper filtration system |
| 25 | Quantity of filter | 1 pieces |
| 26 | Material | 304 Stainless steel |
| 27 | N.W.(kg) | 45 |
| 28 | Dimension （W*L*H） | 920*460*800mm |
Main Parts& Standard Equipment
| No. | Spare parts |
|---|---|
| 1 | X Y Z ball screw |
| 2 | W axis ball screw |
| 3 | X Y Z linear guideway |
| 4 | X Y Z motor |
| 5 | X Y driver |
| 6 | Z drier |
| 7 | W axis motor |
| 8 | Rotation motor |
| 9 | electrical pump |
| 10 | Pneumatic pump |
| 11 | scale |
| 12 | operating system |
| 13 | Circuit breakers, contactors |
| 14 | Allen key |
| 15 | Double-head screwdriver |
| 16 | Specialized electrode scissors |
| 17 | Guide |
| 18 | Guide |
| 19 | Brass electrode tube |
| 20 | Brass electrode tube |
| 21 | Electrode sealing ring |
| 22 | Precision drill chuck |
| 23 | Machine foot |
| 24 | Clean water tank |
| 25 | Dirty water tank |
| 26 | Balance holder |
| 27 | Water baffle |
| 28 | Operation Manual |
| No. | Spare parts |
| 1 | X Y Z ball screw |
| 2 | W axis ball screw |
| 3 | X Y Z linear guideway |
| 4 | X Y Z motor |
| 5 | X Y driver |
| 6 | Z drier |
| 7 | W axis motor |
| 8 | Rotation motor |
| 9 | electrical pump |
| 10 | Pneumatic pump |
| 11 | scale |
| 12 | operating system |
| 13 | Circuit breakers, contactors |
| 14 | Allen key |
| 15 | Double-head screwdriver |
| 16 | Specialized electrode scissors |
| 18 | Guide |
| 19 | Brass electrode tube |
| 20 | Brass electrode tube |
| 21 | Electrode sealing ring |
| 22 | Precision drill chuck |
| 23 | Machine foot |
| 24 | Clean water tank |
| 25 | Dirty water tank |
| 26 | Balance holder |
| 27 | Water baffle |
| 28 | Operation Manual |
