M Series Centreless Grinding Machine Big Grinder Wheel

Obtain precise roundness and surface finish with the M Series Centreless Grinding Machine. Designed for industrial applications that require consistent and precise surface finishes and dimensional accuracy, these advanced grinding systems fcenterless work without the need for workpiece centering/clamping.

Factory Sale High Precision CNC Centerless Grinder (ATGM-L600）

  • The machine supports through grinding for cylindrical and annular parts and long bars with an uninterrupted, economical process without tool retraction.

  • Through grinding is well-suited for large, high-speed, and robust grinding which improves productivity by saving time and labor.

  • Plunge grinding is a one-operation process on tapered cones (ratio less than 1:20) and formed rotating parts, achieving high precision and speed.

  • Plunge grinding is applicable to step shafts and formed parts and allows seamless addition of automatic systems for loading and unloading.

Model: ATGM-L600 Technical Specification

1.Full grindingATGM-L600
(1) Grinding diameter30-120mm/
80-280mm
2. Maximum grinding length (with 16m material rack)16000mm
3. Grinding wheel specifications (outer diameter*width*inner hole)P600×600×305mm
4. Guide wheel specifications (outer diameter*width*inner hole)P350×600×203mm
5. Grinding wheel speed1100r/min
6. Guide wheel speed (stepless)10-200r/min
7. Guide wheel rack rotation angle
(1) In the vertical plane-2°～+5°
(2) In the horizontal plane-1°～+3°
8. Minimum feed rate of the grinding wheel rack0.001mm
9. Minimum feed of guide wheel frame0.001mm
10. Minimum feed of grinding wheel dresser0.001mm
11. Height from the center line of two grinding wheels to the bottom of the bracket260mm
12. Cooling water flow200L/min
13. Motor power
(1) Grinding wheel motor45KW/55KW
(2) Guide wheel motor5.5KW
(3) Water pump motor0.45KW
(4) Lubrication pump motor0.09KW
(5) Hydraulic pump motor0.75 KW
(6) Magnetic separator0.18KW
14. Power supply for machine tool3-phase 50HZ 380V
15. Machine tool dimensions (length ¡Á width ¡Á height)4400×4300×1700mm
16. Machine tool weightAbout 12000Kg

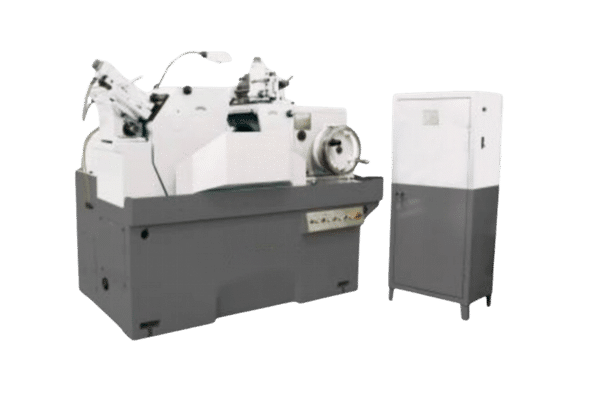

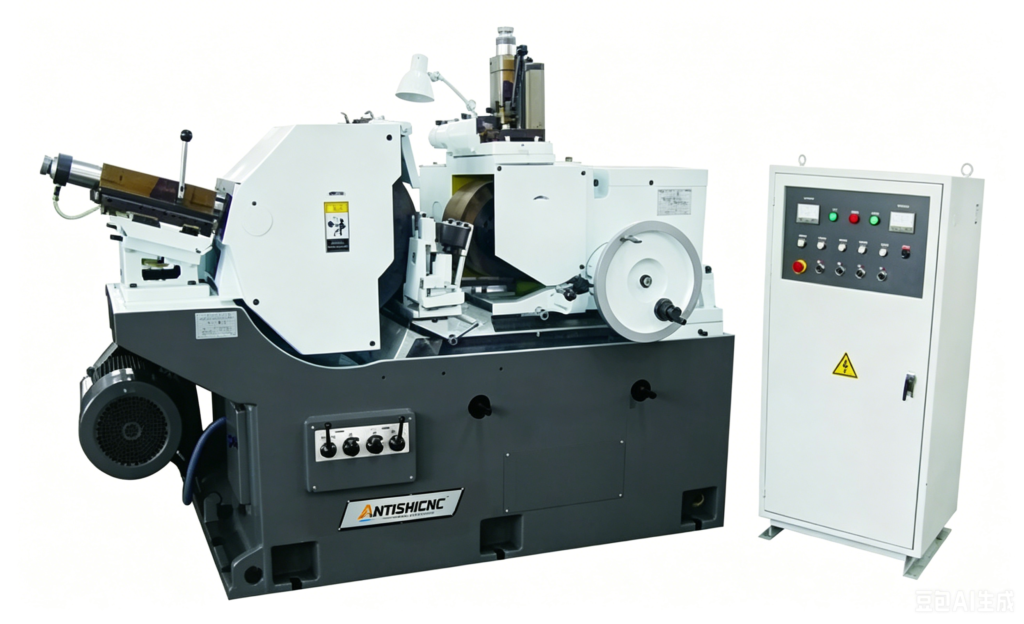

M1018B Product Details

M1018B Product Details

  • The long term effects of aging and heating on the durability of casting.

  • GW is locked while RW is mobile with spindle technology.

  • Manual wheels and feed roller guides.

  • Hydraulic system for dresser, cooling and lubrication.

Model: M1018B Technical Specification

ParametersM1080B
In-feed GrindingDia.5-80mm
Length150mm
Through grindingDia.2-80mm
GW SPEC. (O.D.*width*I.D.)500*200*305mm
RW SPEC.(O.D.*width*I.D.)300*200* 127mm
GW Speed1300r/min
RW Speed (stepless)14- 180r/min
Swiveling Angle of RWVertical-2 。~ +5。
Horizontal0 。~ +3。
GW min feeding amount0.005mm
GW dresser min feeding amount0.01mm
Height from center line of GW & RW to work rest210mm
GW Motor15kw
RW Motor1.5kw
Power Supply3N 50HZ 380V
Dimension(L*W*H)1950* 1580* 1485mm
Machine WeightAbout 3500kg
Accuracy(standard bars D10mm, L50mm)Roundness0.002mm
Cylindricity0.003mm
RoughnessRa.0.32μm

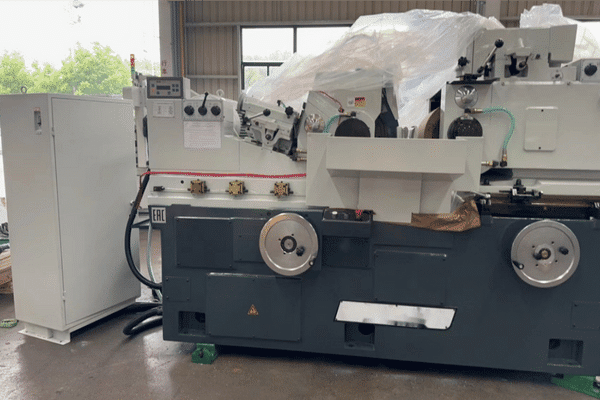

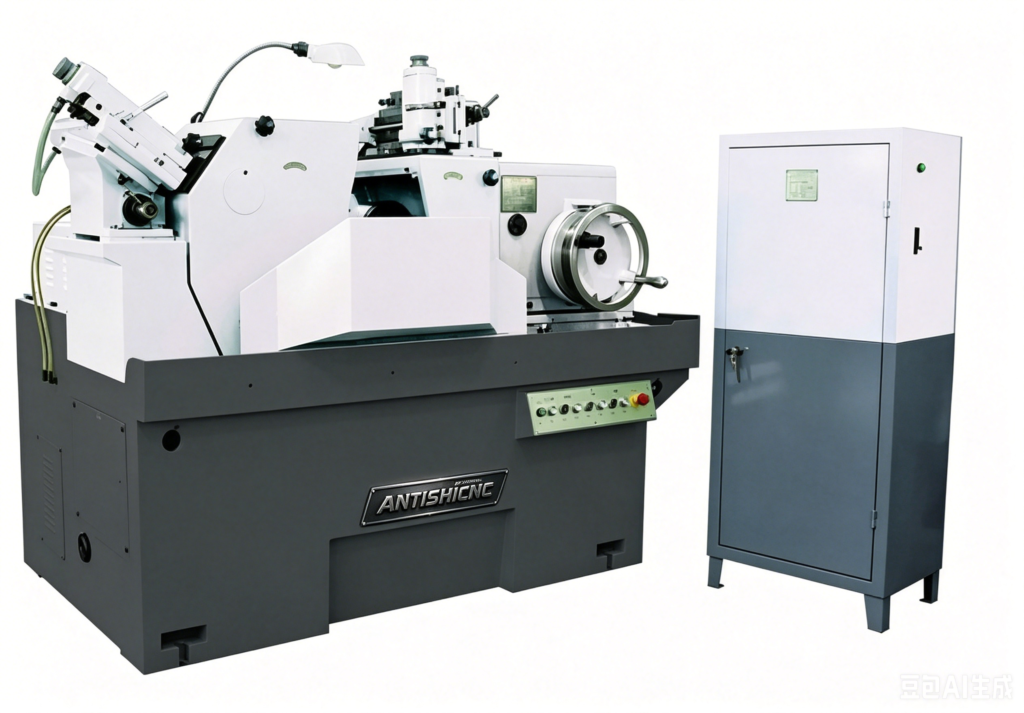

Factory Sale High Precision Centerless Grinding Machine Model: M1083B

  • Assisted the thorough and plunge processes.

  • Long-lasting lathe bed with low wear-resistant modulus.

  • Cantilver grinding wheel with dominant cutting force.

  • Accurate feeding through the needle roller guide slides.

  • Hydraulic dressers and AC vacuum frequency speed control.

Factory Sale High Precision Centerless Grinding Machine Model: M1083B

Supporting Facilities Provided by User

1Voltage 380V
2Total installed power25.8KW
3Operating environment temperature5-40℃
4Grinding fluid filtration methodMagnet + paper tape filter
MK10100 Series Product Details

MK10100 Series Product Details

  • Grinding Capabilities: The machine supports grinding of different cylindrical parts, annular parts, long bars, cones with less than 1:20 taper, and other formed rotating parts.

  • Structural Features: High-quality castings of the machine with normalized heating and treatment and aging naturally guarantee strength and resistance to wear and compression deformations.

  • Precision and Control: The feed mechanism comprises a servomotor, a planetary gear reducer, and a precision ball screw with a minimum feed of 0.001 millimeters, and provides very precise feeding.

Model: MK10100 Series Technical Specification

SpecificationsMK10100SpecificationsMK10100（10～100mm ）
1. Plunge grinding1. Plunge grinding
Standard working table diameter2-100mm Standard working table diameter10～100mm
Maximum grinding length195mmMaximum grinding length195mm
2.Through grinding2.Through grinding
(1) Grinding diameter2-100mm(1) Grinding diameter10～100mm
(2) Maximum grinding length (standard bracket) 210mm(2) Maximum grinding length (standard bracket) 210mm
3. Grinding wheel specifications (outer diameter*width*inner hole)P500×200×305mm3. Grinding wheel specifications (outer diameter*width*inner hole)P500×200×305mm
4. Guide wheel specifications (outer diameter*width*inner hole)PDA350×200×203mm4. Guide wheel specifications (outer diameter*width*inner hole)PDA350×200×203mm
5. Grinding wheel speed1338r/min5. Grinding wheel speed1338r/min
6. Guide wheel speed (stepless)10～200r/min 6. Guide wheel speed (stepless)10～200r/min
7. Guide wheel rotation angle7. Guide wheel rotation angle
(1) In the vertical plane-2°～+5° (1) In the vertical plane-2°～+5°
(2) In the horizontal plane0°～+3° (2) In the horizontal plane0°～+3°
8.Minimum grinding feed0.001mm8. Grinding feed
9. Minimum feed of dresser dial0.01mm(1) Feed per turn of the feed handwheel0.4mm
10. Height from the center line of the two grinding wheels to the bottom of the bracket255mm(2) Feed per grid of the feed handwheel0.002mm
11. Distance from the center line of the two grinding wheels to the bottom of the bed1060mm9. Cut-in grinding stroke
12. Total power of the machine tool(1) Total stroke3.5mm
(1) Grinding wheel motor18.5KW(2) Fast stroke3.5～2.0mm
(2) Guide wheel motor2.2KW(3) Slow stroke0～1.5mm
(3) Cooling pump motor0.18KW10. Feed per grid of the dresser dial0.01mm
(4) Lubrication pump motor0.12KW11. Height from the center line of the two grinding wheels to the bottom of the bracket255mm
(5) Hydraulic pump motor0.75KW12. Distance from the center line of the two grinding wheels to the bottom of the bed1060mm
14. Power supply of the machine tool3N～50HZ 380V13. Total power of the machine tool22.55KW
15. Overall dimensions of the machine tool (L*W*H)2675×1505×1615mm(1) Grinding wheel motor18.5KW
16. Weight of the machine toolAbout 4500Kg(2) Guide wheel motor2.2KW
(3) Cooling pump motor0.18KW
(4) Lubrication pump motor0.12KW
(5) Hydraulic pump motor0.75KW
14. Power supply of the machine tool3N～50HZ 380V
15. Overall dimensions of the machine tool (L*W*H)2675×1505×1615mm
16. Weight of the machine toolAbout 4500Kg

Factory Sale Wide-wheel Centerless Grinder-MK10200

  • Long-Lasting Construction: The body’s casting and natural aging, together with thermal treatment, guarantee durability and negligible deformation.

  • Effective Grinding: 400 mm GW/RW width, with double support and five bearing bushes, results in high efficiency and rigidity.

  • Accurate Feeding: Ball-screw with servo motors and plastic guideways allows for 0.001 mm micron feeding and vibration resistance.

  • Sophisticated Equipment: PLC synchronized Siemens CNC with step-less RW servo-motors, hydraulic and servo dressing, and an electromagnetic cooling filter.

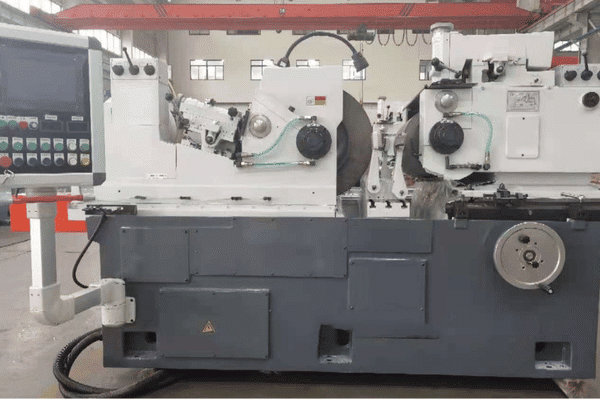

Wide-wheel Centerless Grinder-MK10200

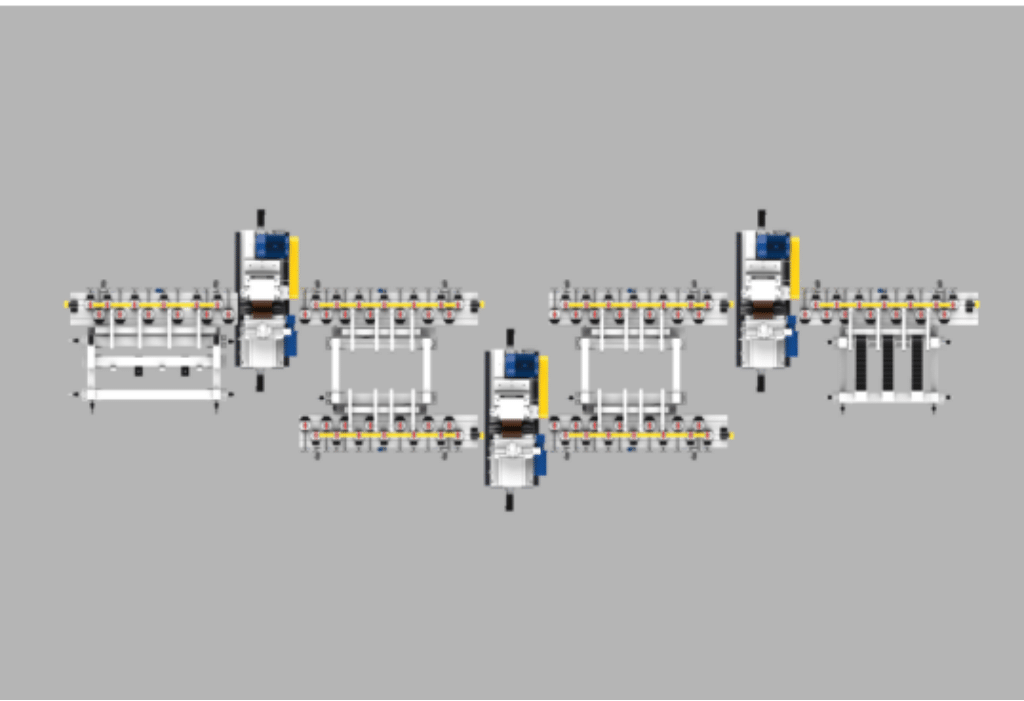

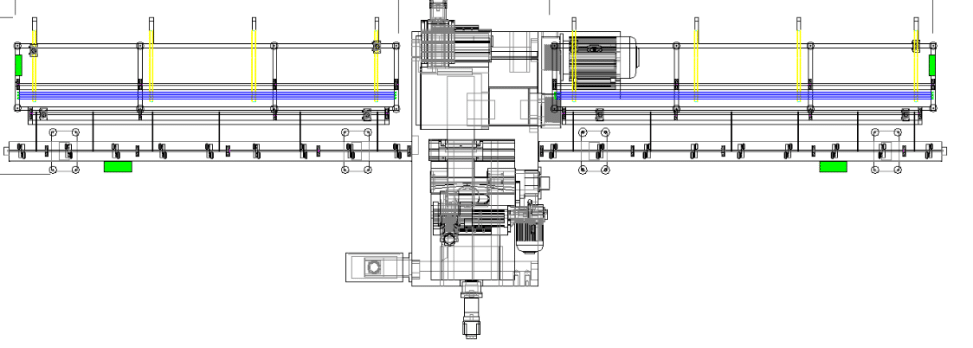

Through grinding with auto loading and unloading Diagram
Model：MK11250

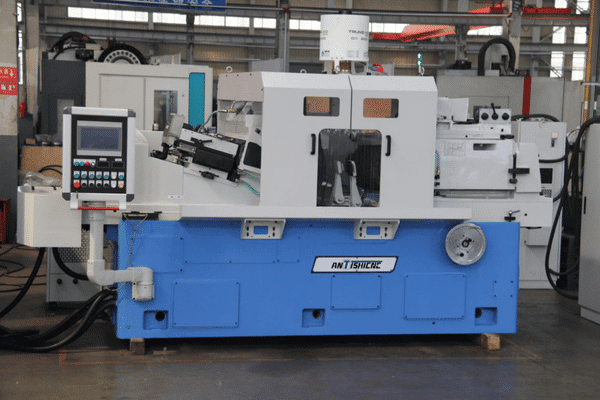

Model：MK11250 Product Details

  • Integral Grinding: Handles both through and plunge grinding for cylindrical, annular, and tapered sections.

  • Stable Construction: The maintained heat-cast bed structure offers reliability and strength while protecting against wear and deformation.

  • Accuracy Systems: The servo-driven precision micro-feeding system, working with stepless speed regulation, offers quite remarkable precision even while working on 0.001 mm structures.

  • Specialized Systems: The Mitsubishi PLC integrated on a touchscreen with cooling magnets and efficient dressing devices offers quite an advantage.

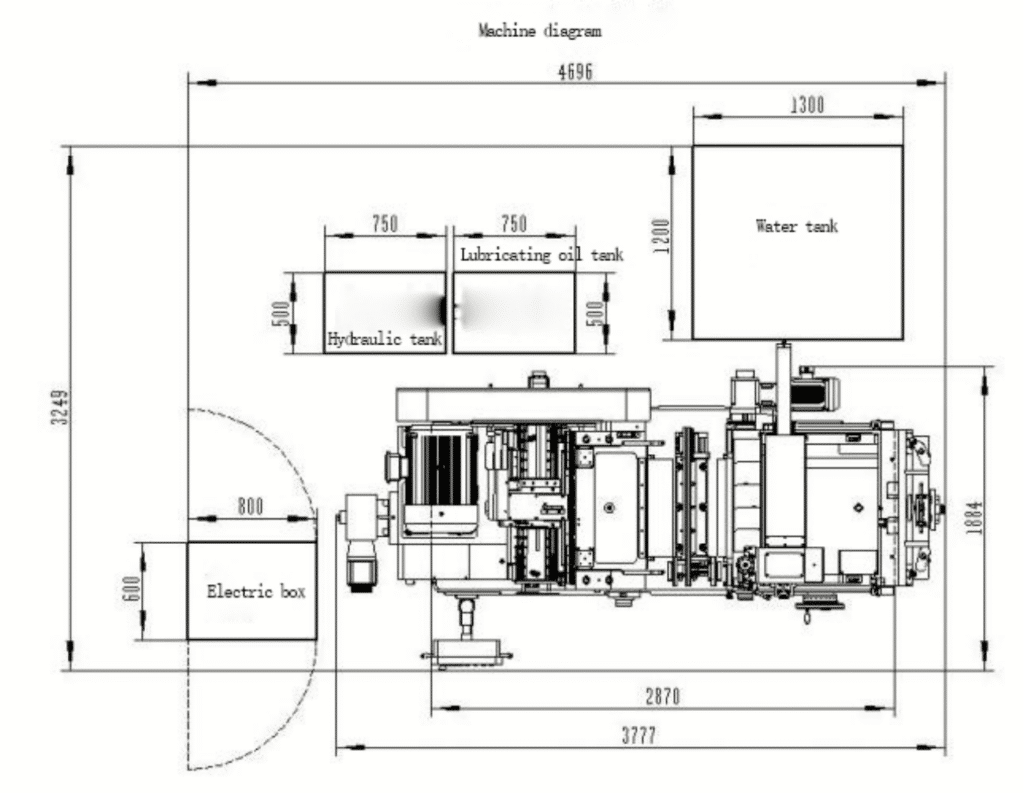

Machine layout

Machine layout

M Series Centreless Grinding Machine: The Big Grinder Wheel

When it comes to precision and accuracy in the world of grinding machinery, the M Series Centreless Grinder stands as a revolutionary solution to the industry’s requirements. At the very heart of this powerhouse lies the Big Grinder Wheel, a component of vital importance that has been finely engineered to meet the needs of high performance and long service life.
