Top Universal Milling Machine Manufacturers and Suppliers in China

X6336CL Universal Turret Milling Machine with horizontal milling

There is no denying that ANTISHICNC universal milling machines are versatile! If you are machining components for the automotive, aerospace, or medical equipment industries, ANTISHICNC has got you covered.

Factory Sale X6336CL Universal Turret Milling Machine with horizontal milling

  • This advanced product of ANTISHICNC export features a compact structure and an elegant appearance, with artistry fused with functionality.

  • Built for versatility, it performs a plethora of operations such as drilling, enlarging holes, reaming, and beveling, as well as surface milling, step planes, sloping, groove milling, cutting, and shaping curves, curved surfaces, and cams with particular precision.

  • With a fuselage made of high-strength cast iron along with key parts possessing a durable microstructure, long stability and working reliability is assured.

Technical Proposal for X6336CL Universal Turret Milling Machine with horizontal milling

ItemsX6336 X6332X6336C X6332CX6336CL X6332CL
Working area1325x360/320mm1325x360/320mm1600x360/320mm
T slot (Width x No. x pitch)18x3x80mm
Max. load of table350kg
±45°table rotationoptional
Distance from horizontal spindle center to worktable surface20-470mm
Distance from spindle nose to table surface200-650mm
Travels
Worktable longitudinal travel (X)750mm1100mm1300mm
Worktable cross travel (Y)320mm(with DRO: 300mm)
Worktable vertical travel (Z)450mm(with rotary worktable:400mm)
Ram travel550mm
Spindle
Turret head spindle taper7:24, ISO40
Turret head spindle speed16steps
66-5440rpm
Turret head motor5HP
Turret head swivel angleL & R 45°
Turret head quill travel127mm
Horizontal spindle taper7:24, ISO50
Horizontal spindle speed12steps
60-1800rpm
Horizontal spindle motor5.5kw
Feed
Rapid feed (X/Y/Z)1200/800/600mm/min
Feed range (X)30-750mm/min
Feed range (Y)20-500mm/min
Feed range (Z)15-375mm/min
Servo motor torque15Nm
Others
Machine size (L×W×H)1800x2100x2500mm2245x2100x2500mm2520x2100x2500mm
Net weight2710kg2780kg2850kg

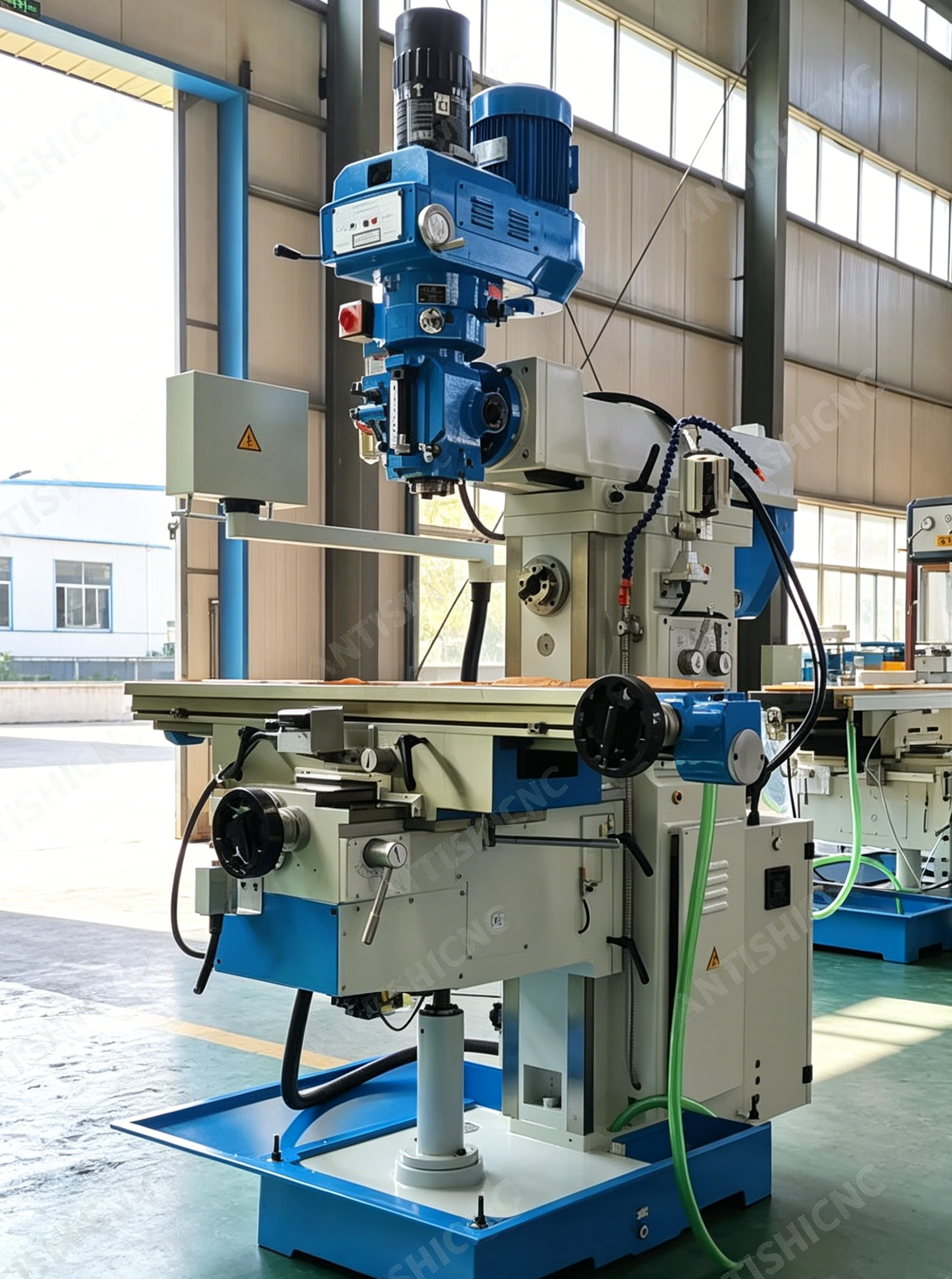

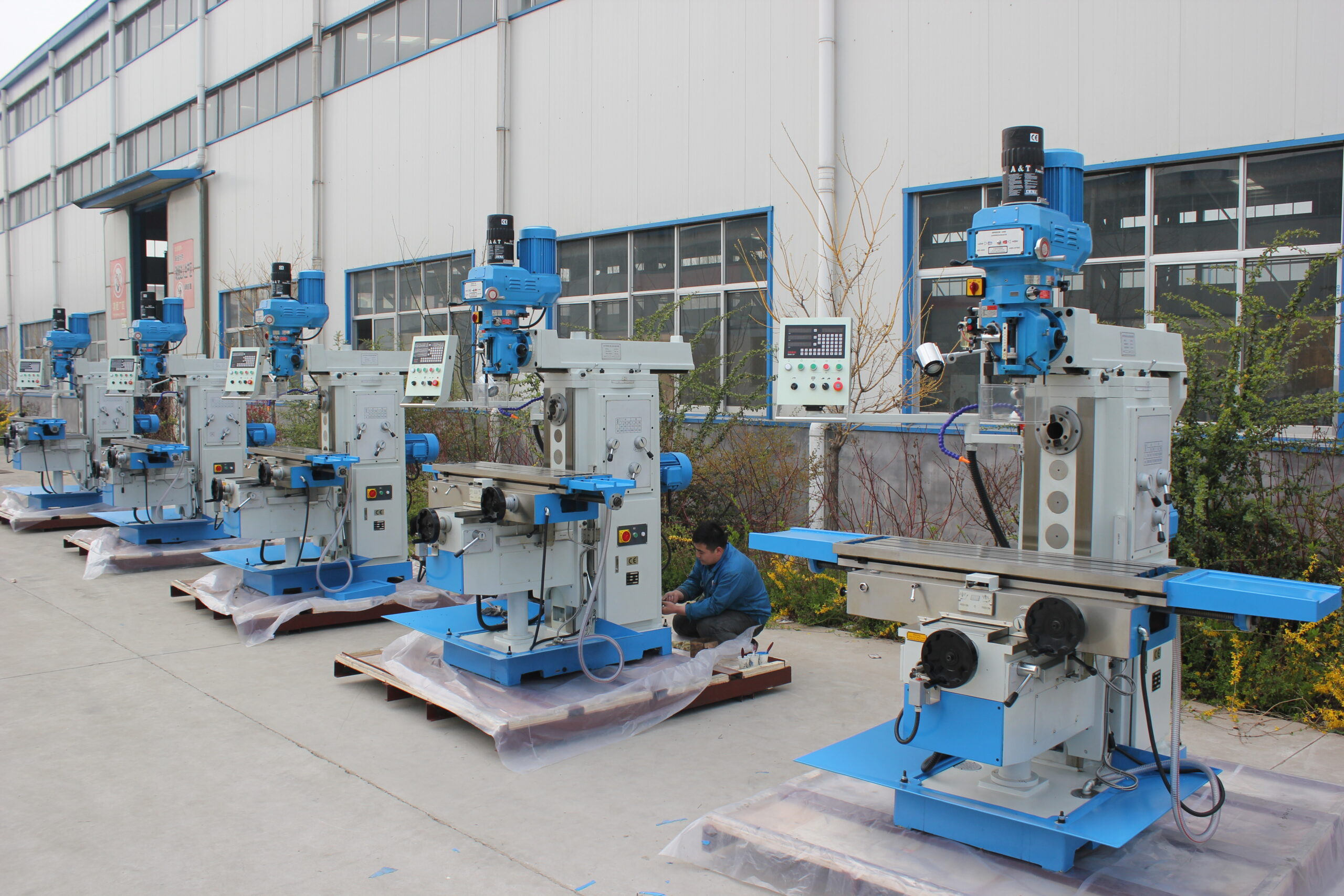

X6336CL Universal Turret Milling Machine with horizontal milling Product Display Picture

Quality Assurance and After-Sales Service

  1. The equipment is a complete, brand-new set of equipment, with reasonable structure, high-strength stability, safety, reliability, and durability, simple operation, and convenient maintenance.
  2. The main parts of the equipment are made of high-quality materials. The selected mechanical, hydraulic, electronic, and electrical components are advanced, high-quality, and reliable series products that meet the requirements of standardization and conformity.
  3. The design, manufacture and test of the equipment comply with the latest national standards, international industrial standards (ISO), and international electrotechnical standards (IEC).
  4. Take appropriate safety protection measures for the dangerous parts of the equipment that may cause personal or equipment injury.
  5. The main color of the equipment is: Standard color system: blue/green or the color specified by the customer. Ensure that the paint coating thickness is uniform and consistent in appearance.

Warranty service:

one year warranty( 12 months since customer receive & use the machine).

The manufacturer guarantees to provide life-long paid maintenance services for the product.

Universal Horizontal Milling Machine: A Comprehensive Guide

In the precision machining world, the universal horizontal milling machine stands as a sophisticated and indispensible tool. This versatile machine can carry out a myriad of operations such as cutting, shaping, drilling, and slotting, earning it the favor of many an operator or manufacturer. Whether you are a professional trying to refine your knowledge or a novice desirous of having his first glimpse of the working of such a wonderful machine, this book provides a deep insight into its working, applications, and advantages.
