Top Vertical Turret Milling Machine Manufacturers and Suppliers in China

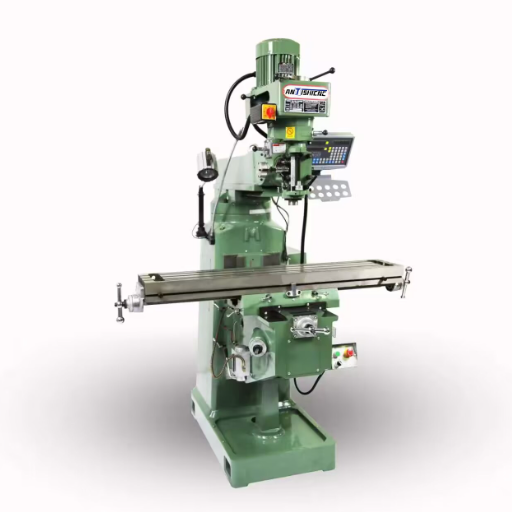

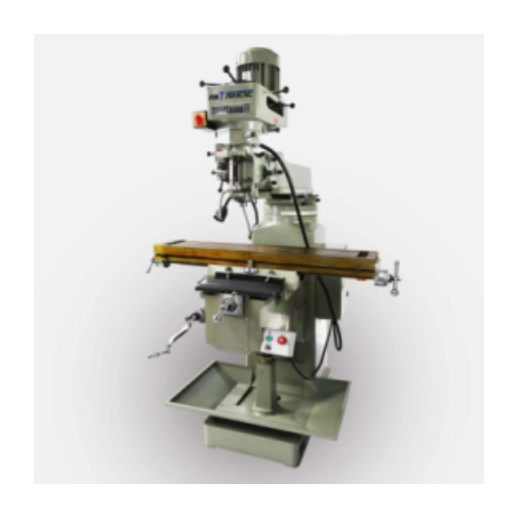

Vertical Turret milling machine M3,M4, M5

ANTISHICNC vertical turret milling machines give you unmatched efficiency and precision that will make your production line run at its maximum efficiency.

Factory Sale M3 M4 M5 Vertical Turret milling machine

  • This machine has a compact design, small footprint, and tremendous versatility. The milling head delivers a 90° rotation to the left and right, plus it goes 45° forward and backward. The ram, in turn, can move back and forth while rotating a full 360° horizontally, greatly enhancing its operational range and functionality.

  • Being made of the durable SC250 cast iron, the machine stands with a very sturdy structure resistant to deformity, which secures long-term changes in the environment, among other things.

  • The tri-axial angle seat nut is made from the finest phosphor bronze (PBC-2), yielding an extraordinary degree of wear resistance, thereby greatly extending its working life.

Technical Proposal for M5 Vertical Turret Milling Machine

Technical SPEC| ModelUnitM5
Long travelmm450(Square guide rail)
Cross travelmm1000 Swallow guide rail
Vertical travelmm500 Square tail rail
Ram travelmm610
Spindle hole taper-NT40
Spindle travelmm127
Spindle Speedsteps16
Spindle motorKW3.7Kw
Automatic liftingKW2.9kw
N.W/setKG1700Kg

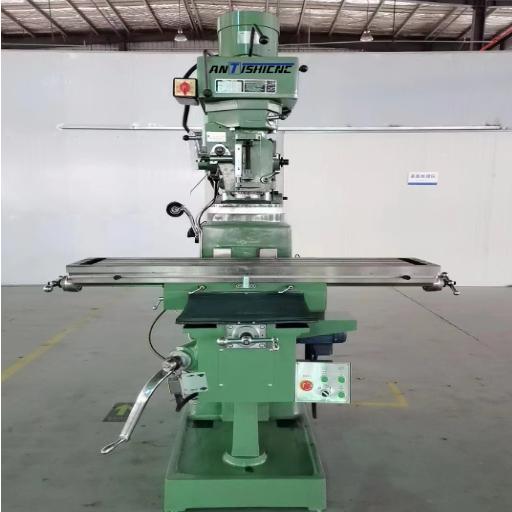

M5 Vertical Turret Milling Machine Product Display Picture

Technical Proposal for M4 Vertical Turret Milling Machine

Technical SPECUnitM4
Long travel(X)mm800 Swallow guide rail900 Swallow guide rail
Cross travel(Y)mm450 Rectangular guide rail
Vertical travel(Z)mm520 Swallow guide rail
T-slot No.and sizemm3×16×63
Ram travel600
Spindle hole taper-Standard :R8
Spindle Sleeve travelmm120
Spindle Speedsteps16
rpm70－4800
Spindle motorKW/HP2.2Kw/3HP
Head swivel ° 90°
Head tilting ° 45°
Dimension of package mm1500×1450×2200
N.W/setKG1100Kg
Table size(Standard=S /Big Size=B)mm/”254×1270254×1370

Technical Proposal for M4 Vertical Turret Milling Machine

Technical Proposal for M3 Vertical Turret Milling Machine

SpecificationsM3
WorktableWorktable Size254×1270/1370
Longitudinal stroke (X axis)800/900（Swallow guide rail）
Lateral stroke (Y axis)450（Swallow guide rail）
Vertical stroke (Z axis)520（Swallow guide rail）
RamRam travel600mm
Spindle sleeveSpindle taperR8;
Sleeve stroke120
Spindle speed (rpm)Vertical70－4800（16 grade）
Main motorVertical2.2Kw
OthersMachine size1500×1450×2200
Net weight1100Kg

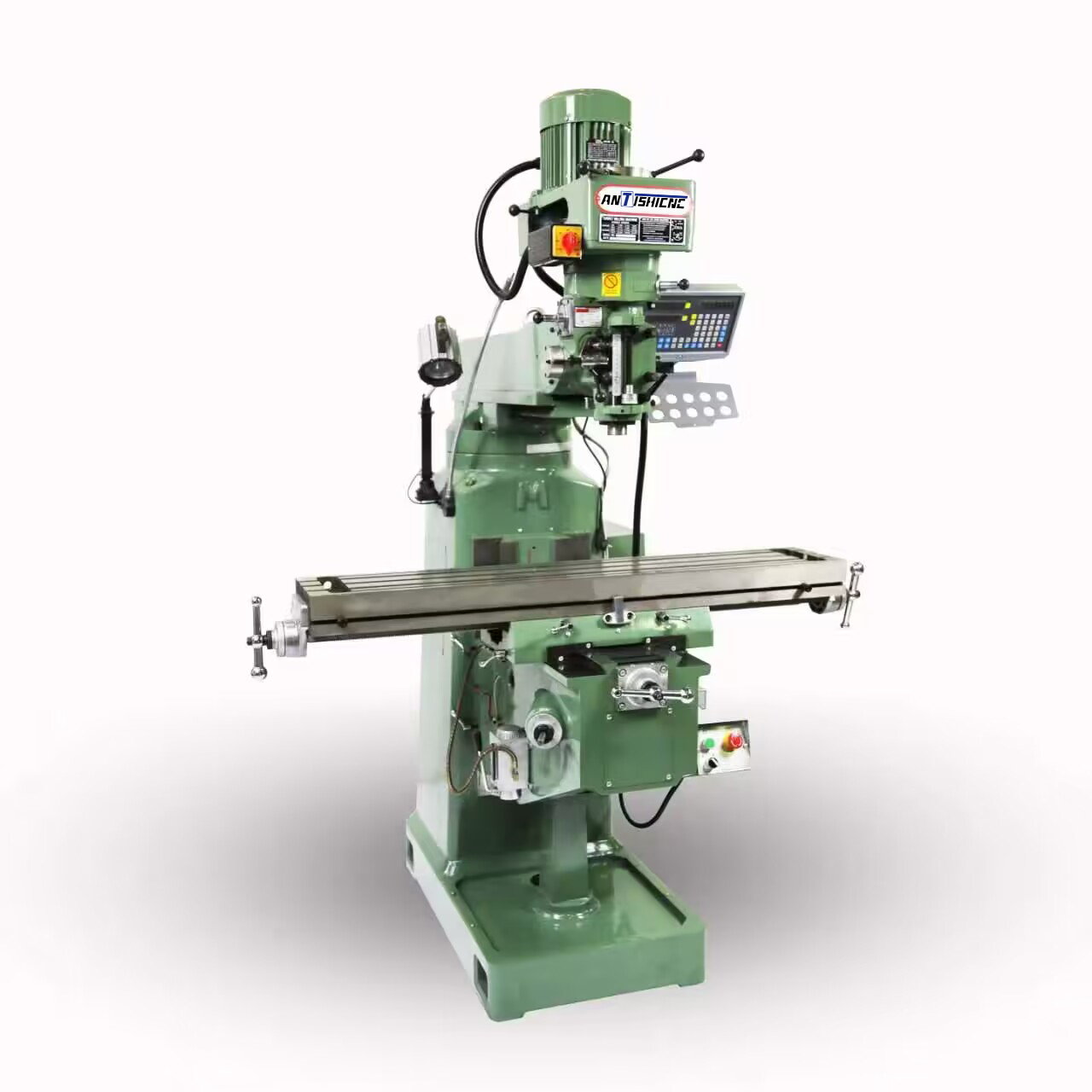

M3 Vertical Turret Milling Machine Product Display Picture

Quality Assurance and After-Sales Service

  1. Since the final acceptance of the machine tool, the machine tool spindle, X/Y/Z axis feeder, all failures caused by quality problems will be guaranteed for one year free of charge.
  2. Since the final acceptance of the machine tool, the failure of other parts caused by quality problems will be guaranteed for one year free of charge.
  3. Since the final acceptance of the machine tool, we also guarantee active cooperation with the user to repair any failures caused by the machine tool’s quality, and cover free labor costs within one year.
  4. Lifetime guarantee to provide spare parts supply at preferential prices.

Warranty service:

one year warranty( 12 months since customer receive & use the machine).

The manufacturer guarantees to provide life-long paid maintenance services for the product.

Vertical Turret Milling Machine M3 M4 M5 Manual: Features, Operations, and Comparisons

Vertical turret milling machines have always been considered essential machinery for the manufacturing and machining industries, offering precision, versatility, and a wide range of applications. Among the various models, the M3, M4, and M5 types have consistently been trustworthy choices for both experienced users and newcomers. This blog post provides a comprehensive review of the features, operation, and differences among these three models. Hopefully, it offers insight into making a wise choice that suits your own needs.
