Top Vertical Milling Machine Center Manufacturers and Suppliers in China

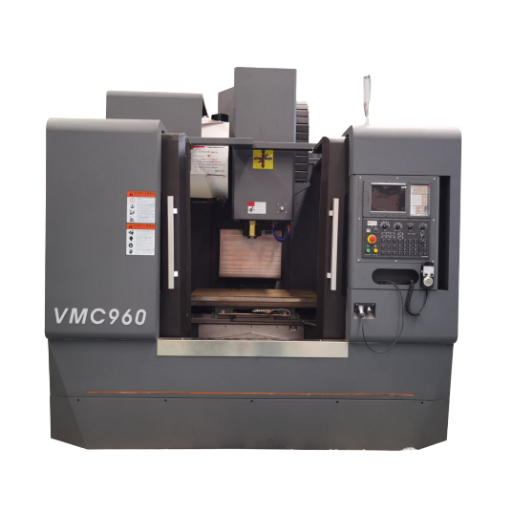

VMC960 Vertical Milling Machine Center

ANTISHICNC, manufactuerers in finest vertical milling machine centers in China due to their precision, innovation, and reliability. They specialize in advanced machining technologies and provide high-performance machines to sectors such as aerospace, automotive, and electronics industries. These manufacturers hold a global reputation for quality and efficiency and have been the customized machinery suppliers for modern manufacturing requirements. Discover the very finest of Chinese engineering, and therefore, take your production capability to the top level with these best vertical milling machine centers.

Factory Sale VMC960 Vertical Milling Machine Center

  • General machining operations:Drilling, milling, boring, reaming, tapping, and so forth are concluded in one single clamping. Generally for tough-to-machine components like molds, plates, and cams.

  • Structural Design:Set in a vertical frame layout with resin sand castings. It was designed using SolidWorks and optimized with Ansys for better stability, stiffness, and vibration control.

  • Precision and Reliability:Conceptualized with C3 grade preloaded ball screws, P4 grade screw bearings, and structurally pre-stretched to cut down on thermal deflection and assure long-term accuracy levels.

  • Safety and Efficiency:Provides a servo motor for the Z axis, fitted with an automatic brake, such that during power failures the back drive is prevented; while the programmed processing is used to reduce production cycle time and improve efficiencies.

Technical Proposal for Vertical Milling Machine Center

SpecificationsUnitsVMC960
worktableWorkbench size mm600*1000
Workbench T-slot5-18*125
Maximum load of workbench (kg)700
TravelLeft and right stroke (X)mm900
Front and rear travel (Y)mm600
Up and down stroke (Z)mm600
SpindleDistance from spindle center to column guide rail mm675
Distance from spindle end face to work table mm120-720
Spindle tool holderBT40
Spindle speed (rpm)10000
Installation diameterΦ140
Spindle motor power (Kw)7.5
Servo motorX.Y.Z axis servo motor (Kw)3.9
X.Y.Z motor connection methodDirect
X.Y.Z guide rail methodLine rail
Tool magazineTool magazine capacity (tools)24 disc type tool magazine
Maximum tool weight Kg8
Maximum tool length mm300
Pull nail modelBT40 45°
Tool holder modelBT40
Fast-movingXYZ rapid traverse speed m/min36-36-24
Cutting feed speed m/min10
XYZ repeat positioning accuracy mm±0.004
XYZ repeat positioning accuracy mm±0.004
Machine weight(T)5.7
CNC systemKND , SIMENS or FANUC

Components of Vertical Milling Machine Center

Spindle
Spindle

The spindle can achieve stepless speed regulation within its speed range. The spindle is controlled by a built-in encoder in the motor, enabling spindle orientation and rigid tapping functions.

Tool magazine
Tool magazine

The tool magazine can be of 16 or 24 high-speed automatic tool changes. The tool changing is accurate, fast, and efficient. It has been tested and used for millions of operations fulfilling reliability requirements; it can be equipped with either a type hat or type round. Damping structures are included in the disc-type and the hat-type tool magazines to absorb shock during movement, thus enhancing the tool magazine service life.

Transmission
Transmission

The screws and nuts are processed, ground, assembled and quality controlled in a constant temperature workshop to ensure their high-precision stability.

Cutting cooling system
Cutting cooling system

The end face of the spindle box is equipped with a cooling nozzle, which can be water-cooled or air-cooled, and can be switched at will. The cooling process can be controlled through M code or control panel.

Pneumatic system
Pneumatic system

The pneumatic triplex can filter impurities and moisture in the air source to prevent impure gas from damaging and corroding machine tool components. The solenoid valve group is controlled by PLC program to ensure that spindle tool unclamping, spindle tool clamping, spindle air cooling and other actions can be completed quickly and accurately.

Lubrication system
Lubrication system

The guide rails, ball screw pairs and support bearings all use centralized automatic thin oil lubrication. Each node is equipped with a quantitative oil separator, which regularly and quantitatively injects oil into each lubrication part to ensure that each sliding surface is evenly lubricated, effectively reducing friction resistance.

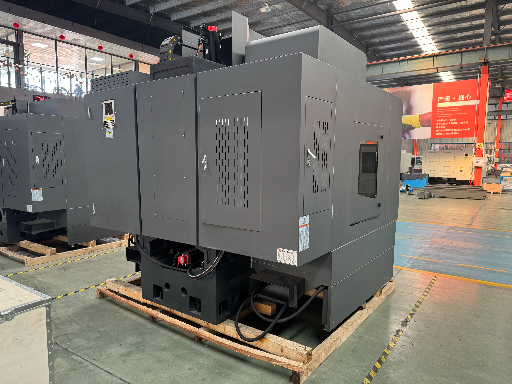

vMC960 Vertical Milling Machine Center Product Display Picture

Quality Assurance and After-Sales Service

  1. Shanghai ANTS Machine Equipment Co., Ltd. fully fulfills the terms of machine tool technical services promised to users.

    1. Since the final acceptance of the machine tool, the machine tool spindle, tool magazine, automatic tool changer, X/Y/Z axis ball screw, all failures caused by quality problems will be guaranteed for one year free of charge.
    2. Since the final acceptance of the machine tool, the failure of other parts caused by quality problems will be guaranteed for one year free of charge.
    3. Since the final acceptance of the machine tool, we also guarantee to actively cooperate with the user to repair the failure caused by the quality of the machine tool, and free labor costs within one year.
    4. Lifetime guarantee to provide spare parts supply at preferential prices.

Warranty service:

One year warranty( 12 months since customer receive & use the machine).

The manufacturer guarantees to provide life-long paid maintenance services for the product.
