Top Universal Lathe Manufacturers and Suppliers in China

C616-1D Universal Lathe Machine

At ANTISHICNC, top-notch Chinese machinery builders manufacture universal lathes, crafted with precision, durability, and versatility. Suitable for machining, prototyping, and customization purposes, these lathes cater to the requirements of both smaller and larger projects.

Factory Sale C616-1D Universal Lathe

  • The C616-1D series horizontal lathe is manufactured for versatility and finds applications for turning internal and external cylindrical surfaces, conical surfaces, and any other rotational surfaces.

  • It can also manufacture various threads—metric, inch, module, and diametral pitch—and perform drilling and oil groove cutting as well. Perfect for batch processing of shafts and disc components.

  • There is an improved bed in this series where the guide rail width of 400mm is much broader than the standard lathe; hence, it has excellent rigidity. The guide rail surface is hardened by intermediate frequency quenching and is therefore capable of withstanding tough wear.

Technical Proposal for Universal Lathe

SpecificationC616-1D
Center height160mm
Max .Swing over bed320mm
Max .Swing over carriage175mm
Max .length of work piece750mm
Width of bed312mm
Spindle taperMT5
Thru-hole spindle40mm
Spindle speed45-1980r/min (12steps)
Tailstock center sleeve travel95mm
Tailstock center sleeve taperMT4
Spindle motor125kw
Range of metric thread(kinds)0.5-9mm (17 kinds)
Range of inch thread(kinds)2-38 n/1’’ (32kinds)
Longitudinal feed per spindle rev.0.03-3.34mm
Cross feed per spindle rev.0.02-2.45mm
Overall dimensions2340×900×1190 mm
Net weight1600kg

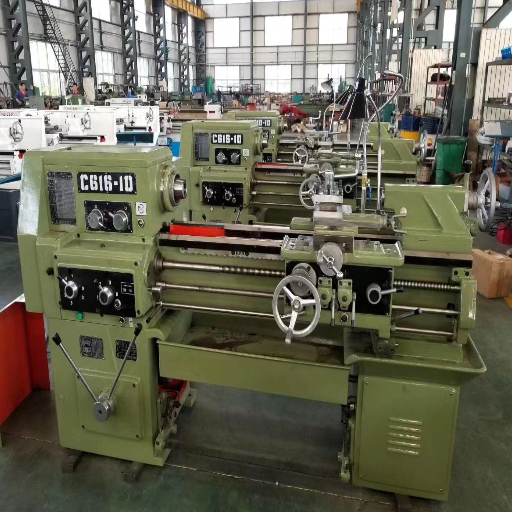

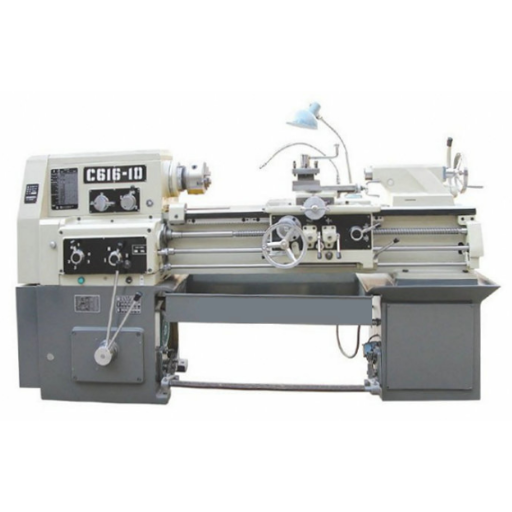

C616-1D Universal Lathe Product Display Picture

Quality Assurance and After-Sales Service

The main functional advantages of ANTISHI Lathe Equipment:

  1. The equipment is a complete, brand-new complete set of equipment, with reasonable structure, high-strength stability, safety, reliability and durability, simple operation and convenient maintenance.
  2. The main parts of the equipment are made of high-quality materials. The selected mechanical, hydraulic, electronic and electrical components are advanced, high-quality and reliable series products, and meet the requirements of standardization and standardization.
  3. The design, manufacture and test of the equipment comply with the latest national standards, international industrial standards (ISO), and international electrotechnical standards (IEC).
  4. Take appropriate safety protection measures for the dangerous parts of the equipment that may cause personal or equipment injury.
  5. The main color of the equipment is: Standard color system: yellow/black or the color specified by the customer. Ensure that the paint coating thickness is uniform and beautiful.

Warranty service:

one year warranty( 12 months since customer receive & use the machine).

The manufacturer guarantees to provide life-long paid maintenance services for the product.
