Industry Revolution: With a fast-evolving manufacturing industry, precision, efficiency, and adaptability have become the sore need of the hour. Here enters in the picture the High-Speed Circular Sawing Machine HY-85NC, a CNC-based design tool that offers unmatched speed and accuracy.
🔧 Overview of the HY-85NC Circular Saw Machine
Introduction to the HY-85NC
The Circular Saw Machine HY-85NC represents a significant leap in technology, offering superior sawing capabilities that meet the exacting demands of 21st-century manufacturing. This power machine features state-of-the-art mechanisms for precision, efficiency, and reliability, operating on various materials such as steel, aluminum, and stainless alloys while producing clean cuts that minimize material wastage.
⚡ Advanced NC System
Controls automation efficiently so that no human mistakes occur and allows cutting speeds of up to 120 m/min for large capacity manufacturing.
🔋 High Torque Motor
It is designed for heavy applications with servo-feed system for accurate positioning of the material.
🎯 Easy to Use Interface
An intuitive control interface with a feature to easily enter parameters with minimal workflow downtime.
🌱Energy Efficient
Certified energy-saving design with lower power consumption while attaining peak performance.

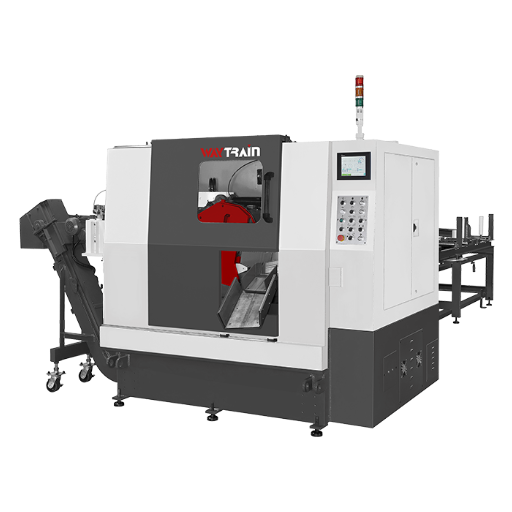

🚀 High Speed Circular Saw Machine Features
High Cutting Speed and Precision
- Cutting speed: with RPM winds up to 5000 cuts for cleaning, accurate cuts.
- Materials: Steel, aluminum, and other alloys
- Efficiency: Reduction of wastage of material, thus ensuring curtailment of time and increasing production efficiency.
Energy-Efficient Technology
- Energy Savings: Consuming 30% less energy in comparison to conventional machines
- Green Production: Offering environmentally greener manufacturing, due to the right motor and cooling system
- Cost Reduction: Operational costs down because of optimized power usage
Durability and Reliability
- Fabrication: Construct with high-grade steel and elements resistant to corrosion.
- Performance: Undergoes heavy-duty industrial application.
- Durability: It holds optimal working competence for a longer period.
Advanced Safety and Management Features
- Safety Systems: Emergency stop, blade guards, anti-vibration technology
- Dust Management: Advanced debris extraction system for clean working environment
- Intelligent Diagnostics: Continuous performance and maintenance monitoring
🔬 Technical Specifications
| Specification | Value | Details |
|---|---|---|
| Dimensions (L×W×H) | 2800×1800×1600 mm | Compact design for space-constrained workshops |
| Weight | 3200 kg | Ensures stability and durability during operation |
| Motor Power | 15 kW | Robust performance for demanding manufacturing tasks |
| Cutting Speed Range | 50-1500 RPM | Variable speeds for different materials and requirements |
| Traverse Speed | 24 m/min | High repositioning speed for reduced cycle times |
| Blade Types | Bi-metal & Carbide-tipped | Optimized for various materials and cutting applications |
💡 The Significance of CNC in Sawing
In this respect, Computer Numerical Control (CNC) has revolutionized sawing, applying a greater emphasis on supreme precision and time efficiency, imparting a constant quality to all applications. By automating complicated sawing tricks, human errors can be reduced to a minimum and the wastage of materials is minimized.
Benefits of CNC:
- 30% accuracy in cutting improvement in comparison with manual cutting.
- Productivity enhanced between 25-40% as testified by leading manufacturers in the business.
- Complex pattern processing with absolute precision on different materials.
- Environmentally friendly by efficiently using materials and reducing scraps.
⚡ Efficiency and Performance
High Precision in Metal Cutting
Modern CNC systems grant tolls down to ±0.002 inches, ensuring extreme precision needed for aerospace, automotive, and manufacturing bounded applications.
- Tolerance Range: ±0.002 inches-Tolerance Capability
- Market Growth: Global CNC Cutting machine market expected 7.7% CAGR (2023-2030)
- Possible Materials: Titanium, stainless steel and other hard-to-turn materials
- Economic Justification: Reduced material wastage and overheads
Speed Comparison: Modern vs Traditional Machines
| Performance Metric | Traditional Machines | HY-85NC CNC | Improvement |
|---|---|---|---|
| Spindle Speed | Up to 3,000 RPM | Up to 12,000+ RPM | 300%+ increase |
| Operation Speed | Baseline | 20-30% faster | Significant boost |
| Setup Time | Manual setup | 50% reduction | Automated processes |
| Accuracy | ±0.010 inches | ±0.001 inches | 10x improvement |
🏭 Applications of the HY-85NC in Industry
Tube Cutting Excellence
The HY-85NC serves as a fine tube cutting solution in various industries:
- Manufacturing: Automotive, aerospace, construction, furniture
- Material: Steel, Stainless Steel, Aluminum, Copper Tubes
- Efficiency: Material wastage reduction by 20-30%
- Precision: ±0.1 mm cutting tolerance qui ensures consistent quality
Market Insights:
The global tube-cutting machine market is projected to grow at a CAGR of 5.2% between 2023 and 2030, attributable to a drive toward higher automation levels. The HY-85NC offers great compatibility with said trend with its integrated software tools for programming and real-time monitoring.
Heavy Duty Metal Circular Cutting
- Cutting Speed: Up to 70 meters per second (material-dependent)
- Blade Life: Improvement of 30% in blade life through use of advanced technologies
- Energy Efficiency: 20% diminution in energy cost
- Monitoring: Optimization of systems in real-time with wear detection
📈 Real-World Case Studies and Success Stories
Case Study 1: Automotive Industry Application
Challenge: Precision cutting of metal parts for engine assemblies
Results:
- 25% less material wastage
- 18% reduction in production lead times
- Sustainability enhanced through efficient resource utilization
Case Study 2: Precision and Aerospace
Challenges: Executing high-accuracy turbine component cutting
Results Achieved:
- 30% increase in cutting accuracy
- A drastic diminution in post-processing requirements
- 15% decrease in downtimes because of better reliability
Case Study 3: Energy Deployment
Challenge: Manufacturing steel structures for wind turbines
Results Achieved:
- 20% more output due to lean fabrication
- 12% less power consumption
- Green industrial process support
🔧 Maintenance and Care for Optimal Performance
Essential Maintenance Tips
Daily Maintenance
- Clean Cutting Tools: Use lint-free cloth and suitable cleaners and disinfectants (can increase the life expectancy of the machine by 25%).
- Inspect the Work Area: Dust-free environment is necessary for the highest level of performance.
Weekly Maintenance
- Lubricate Moving Parts: Lubricate with the type of lubricant recommended by the makers of the machine (15-20% improvement in efficiency)
- Inspect Components: Inspect all components for wear: blades, motor, drive belts.
Monthly Maintenance
- System Calibration: Maintain to precision standards every three months.
- Software Updates: Keep an eye on firmware and software updates.
Common Problem Solutions
| Problem | Possible Cause | Solution |
|---|---|---|
| Machine Won’t Start | Power supply or safety features | Check power connection and safety switch positions |
| Poor Cutting Accuracy | Dull blade or misalignment | Replace blade and calibrate machine alignment |
| Excessive Vibration | Uneven surface or lack of lubrication | Level machine and lubricate as per manual |
| Overheating | Blocked air vents or cooling system | Clean vents and check cooling system function |
Extending Machine Life
- Regular Cleaning: The working life is reduced by nearly 30% if dust settles onto the machinery.
- Blade Maintenance: A fine sharpness gives nearly 25% better precision and reduces stress on the motor.
- Proper Lubrication: Increases operational efficiency by 20%
- Electrical Inspections: Prevent 70% of equipment failures as per NEMA guidelines
- Correct Usage: Welding the correct type of blade with a right feed rate reduces wear by almost 40%
❓ Frequently Asked Questions
Now, what are the advantages of having a fully automatic high-speed circular sawing machine?
A fully automatic high-speed circular sawing machine has so many advantages: it is very efficient, great savings on manual labor costs. The blade may always be kept in top condition to give excellent cuts, thanks to the automatic lubrication and cooling systems, and it also increases blade life. Automatic material handling reduces human errors, guaranteeing cut precision-appropriate for very critical industries required for high-quality, precise metal cutting in bulk operations.
What features distinguish the HY-85NC from the many other types of CNC circular saw machines?
Very intensively, high-speed features set it apart from other machines. High-performance transmission gears assure durability and uninterrupted operation; in contrast with conventional machines. It can precisely feed and can accommodate a variety of blades by virtue of its high-rigidity frame, making it a preferred choice for industries involved in heavy metal circular cutting work.
What are some materials cut by a high-speed Metal Circular Saw?
Strange though it might seem to the uninitiated, it will accept anything from steel, aluminum, to all sorts of metals, including cutting metal circular pipes and bars; thus, it is relevant in the fabrication and construction. Cutting speed is sufficiently fast so that harder material could be cut quickly without the waste of blade life; the saw box ensures stability for good cut finishing.
What features enhance saw blade accuracy and service life in HY-85NC?
The high-precision spindle gearbox permits running at hard speed steadily, and the automatic lubrication system prevents unnecessary friction to prolong blade life. The workpiece clamping system also keeps the cutting operation smooth. The aforementioned features altogether serve to increase working efficiency and longevity.
🚀 Ready to Transform Your Manufacturing Process?
The HY-85NC awakens the cutting-edge of circular saw technology with precision, efficiency, and reliability. Irrespective of whether you are in automotive, aerospace, construction, or requiring a high standard of metal cutting, HY-85NC commands an unequalled performance.
