In threading pipe operations where precision and efficiency are fundamental, the QK1313 CNC Pipe Threading Lathe manages to turn the tables. The latest technology on this machine makes it very adaptable and extremely efficient, yet easy to operate. These qualities are necessary to satisfy requirements of the current industries.
Key Point: Be it in the oil and gas industry, pipeline manufacturing, or in any other area demanding that threaded pipes be made to high standards, you can rely on QK1313 for promise and consistency in the last step of threading.

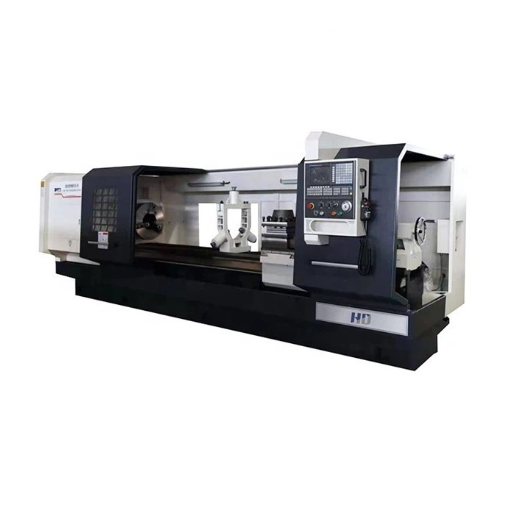

Introduction to CNC Pipe Threading Lathes
What is a CNC Pipe Threading Lathe?
A CNC Pipe Threading Lathe serves as a specialized machine tool for cutting threads on pipes, delivering utmost accuracy by the interface of advanced CNC technology. Such machines are crucial to provide precision threading operations in these industrial applications:
- Oil and gas – Critical pipeline connections
- Construction – Building infrastructure systems
- Manufacturing – Industrial pipe production
- Plumbing – Residential and commercial installations
Technology Advantages
Through CNC technology, lathes automate the process of threading, thus reducing human error and providing consistent results with minimal manual efforts. Modern CNC Pipe Threading Lathes are fitted with:
- Constant surface speed control
- Auto chuck systems
- High-speed spindles
- Advanced programming capabilities
Market Growth: Global market trends show CNC machines will see increased adoption, with the CNC machining market forecasted to grow at a CAGR of 5.5% from 2023 to 2030.
QK1313 Model Overview
The QK1313 CNC Pipe Threading Lathe is a state-of-the-art machine developed explicitly for precision threading operations on pipes and tube products. The intention of the QK1313 model is efficient and reliable threading of pipes and tubes by numerical control.
Key Features
- High Precision Spindle System – Reduction of vibration and better surface finish
- Has a Wide-Range Thread Cutters: Metric, inch, BSP, NPT, and others
- Heavy Duty Construction– cast iron base for stability and long working life
- Very Buyer-Friendly Interface– Ergonomic control panel with programmable features
Technical Specifications
| Specification | Value |
|---|---|
| Swing Over Bed | 630 mm |
| Max Diameter of Pipe Threading | 200 mm |
| Distance Between Centers | 1500 mm |
| Spindle Bore Diameter | 130 mm |
| Spindle Speed Range | 30 to 800 RPM (variable) |
| Threading Pitch Range | 1-14mm |
| Main Motor Power | 11 kW |
| Weight | Approximately 4,200 Kg |
Advanced Functions
- Precision ball screw drives and servo systems
- Automatic lubrication system
- Taper threading capabilities
- Straight threading operations
- Drilling functions

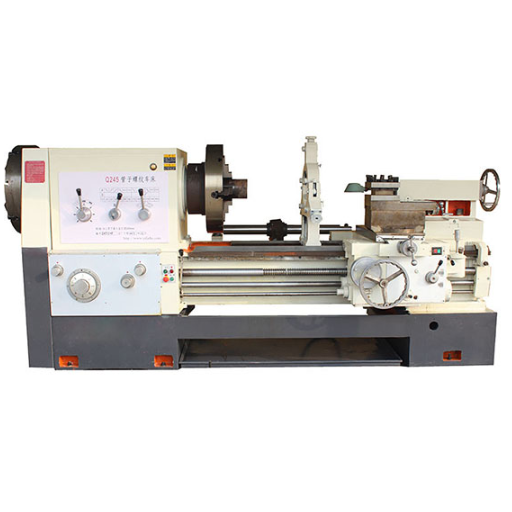

Key Features of the QK1313 CNC Pipe Threading Lathe
Advanced CNC Technology
Sturdy CNC system that allows automated and accurate threading of pipes of various sizes and thread specifications. Supports advanced programming for both conventional and non-standard threading operations.
Large Capacity Machining
Can machine workpieces up to 630mm diameter and 2000mm in length, ideal for industries like oil and gas, construction, and pipeline manufacturing.
Safety and Efficiency Features
- Safety Features
- Automatic shut-off sensors
- Enclosed working space
- Protection from overloading
- Maintenance Systems
- Advanced coolant system
- Efficient chip disposal
- Energy-saving design
- Industry 4.0 Compatibility
- Real-time monitoring
- Smart factory integration
- Diagnostic capabilities
Understanding Pipe Threading Technology
Basics of Pipe Threading
Pipe threading is an extremely important process performed to induce threads onto the ends of pipes, so these can be joined mechanically for fittings or for another pipe. These operations are carried out in fields such as:
- Oil and gas – High-pressure pipeline connections
- Plumbing – Water supply and drainage systems
- Manufacturing – Industrial piping networks
Threading Standards
| Standard Type | Application | Primary Region |
|---|---|---|
| National Pipe Thread (NPT) | General piping | United States |
| Metric Thread | Industrial applications | Europe and Asia |
| BSP (British Standard Pipe) | Plumbing systems | UK and Commonwealth |
Precision Achievement: Many modern CNC pipe threading lathes carry out thread depth tolerance within ±0.01mm, drastically limiting the scope of error in large industrial applications.

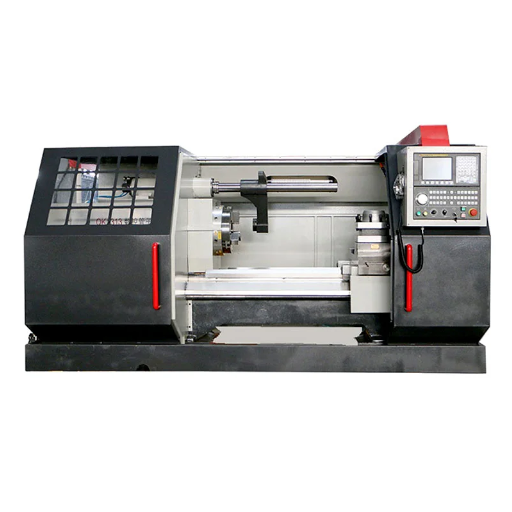

Applications of the QK1313 CNC Pipe Threading Lathe
Industry Uses: Oil and Gas
In the oil and gas industry, the QK1313 CNC Pipe Threading Lathe precisely processes and threads pipes with necessary precision and efficiency. Main applications include:
- Drill pipes – High-pressure downhole operations
- Casing – Well construction and integrity
- Tubing – Production and injection systems
Market Growth: The global oilfield services industry is expected to grow at a rate of 4.5% CAGR from 2023 to 2028, making modern machining solutions like the QK1313 highly sought after.
Plumbing Applications
Within the plumbing profession, the QK1313 CNC Pipe Threading Lathe provides precision, efficiency, and adaptability. Key benefits include:
- Manufacturing of threaded pipes with higher precision
- Creating leak-proof joints
- Handling diverse materials (steel, copper, PVC)
- Conforming to ASTM standards
Market Impact: Global plumbing pipe market is growing at a CAGR of 4.25% in the worldwide scope, construction activities, and infrastructure developments being the prime forces propelling it.

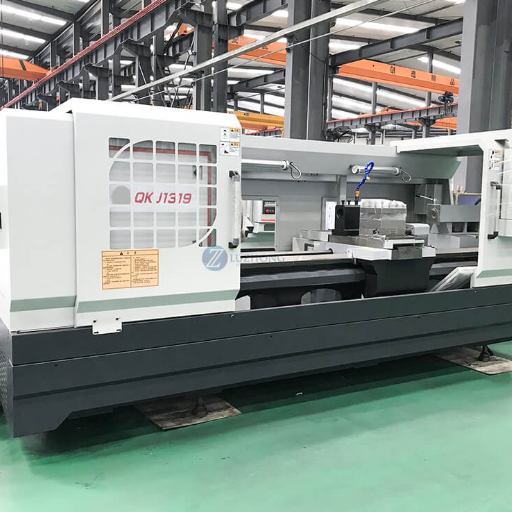

Benefits of Using the QK1313 CNC Pipe Threading Lathe
High-Precision Machining
The QK1313 achieves tolerance levels of ±0.01 mm while producing consistent thread patterns. Key precision features:
- Advanced servo motor systems
- High-performance spindle
- Automated feedback systems
- Real-time correction capabilities
Performance Data: Recent studies reveal that precision CNC machining boosts production efficiency up to 40% while cutting material wastage by almost 30%.
Efficiency & Productivity Improvements
| Improvement Area | Percentage Gain | Impact |
|---|---|---|
| Machine Downtime Reduction | 25% | IoT connectivity and predictive maintenance |
| Cycle Time Reduction | 15-20% | AI-optimized machining paths |
| Production Increase | 35% | Automated tool calibration |
| Labor Cost Reduction | 30% | Reduced manual intervention |
Economic Production Benefits
- Material Optimization – 20% reduction in material wastage through auto nesting
- Operational Efficiency – 22% average improvement in operational efficiency
- Maintenance Savings – 25% reduction in machine downtime costs
- Energy Efficiency – 15% reduction in energy consumption
Real-World Success Stories
Case Study: Oil and Gas Sector
The oil and gas industry has rapidly adopted data-driven approaches with impressive results:
- BP’s Machine Learning Success – Improved exploration accuracy and reduced drilling costs for non-productive wells
- Shell’s IoT Implementation – 5% increase in production efficiency at remote offshore facilities
- Chevron’s AI Supply Chain – 20% enhancement in supply chain efficiency
Predictive Maintenance Results: According to Deloitte, predictive analytics can reduce maintenance costs by 30% and eliminate random failures up to 70%.
Manufacturing Achievements with the QK1313
The QK1313 has set new standards in modern manufacturing with documented achievements:
| Achievement | Improvement | Industry Impact |
|---|---|---|
| Production Speed | 35% increase | Faster project completion |
| Material Waste | 20% reduction | Enhanced sustainability |
| Energy Consumption | 15% decrease | Lower operational costs |
| Setup Time | 40% reduction | Increased flexibility |
Frequently Asked Questions (FAQ)
What is a QK1313 CNC Pipe Threading Lathe?
The QK1313 CNC pipe threading lathe is a very special machine for processing internal and external pipe threads. This lathe basically uses CNC technology for precision and efficiency during threading operations in petroleum, chemical piping, and geological industries.
How does CNC pipe threading lathe make the process more efficient?
The efficiency of CNC pipe-threading lathes is enhanced through:
- Automating the total threading process
- Avoiding manual intervention and possible errors
- Accommodating various sizes and kinds of pipes
- Offering program setup for different threading specifications
- Maintaining constant good-quality threads
What kind of threads can the QK1313 lathe process for you?
The threads QK1313 can be done by a lathe are:
- Taper threads
- Regular outside pipe thread
- Inside and outside pipe threads
- Both metric and inch dimensions
- Special custom specifications for special applications
What are the common applications of CNC pipe threading machines?
Various applications include the following:
- Oil industry – For processing and repairing drilling pipes
- Chemical piping – Industrial pipeline systems
- Geological exploration – Specialized drilling equipment
- Manufacturing – Threading couplings and fittings
What are the variables to consider before deciding on the purchase of a CNC Lathe Machine?
These criteria pay attention to:
- Machine specification- Spindle bore and working ability
- Thread specification- What types of threads are needed, taper, internal, external
- Automation level- Features that enhance productivity
- Versatility- Ability to work with metric and inches
- Price comparison- Prices of CNC lathe machine in your area
- Quality and performance- Long-term quality and support
Conclusion
This machine, the QK1313 CNC Pipe Threading Lathe, symbolizes an important stride in the precision threading technology field. Given its modern CNC controls, solid construction, and versatile capabilities, it answers demands that are typical of modern industries-from oil and gas to plumbing and manufacturing.
Investment Value: Companies investing in a QK1313 can expect efficiency to improve, costs to go down, precision to go up, and competitiveness to rise in today’s fast-paced manufacturing environment.
