Top Laser Cutting Machine Manufacturers and Suppliers in China

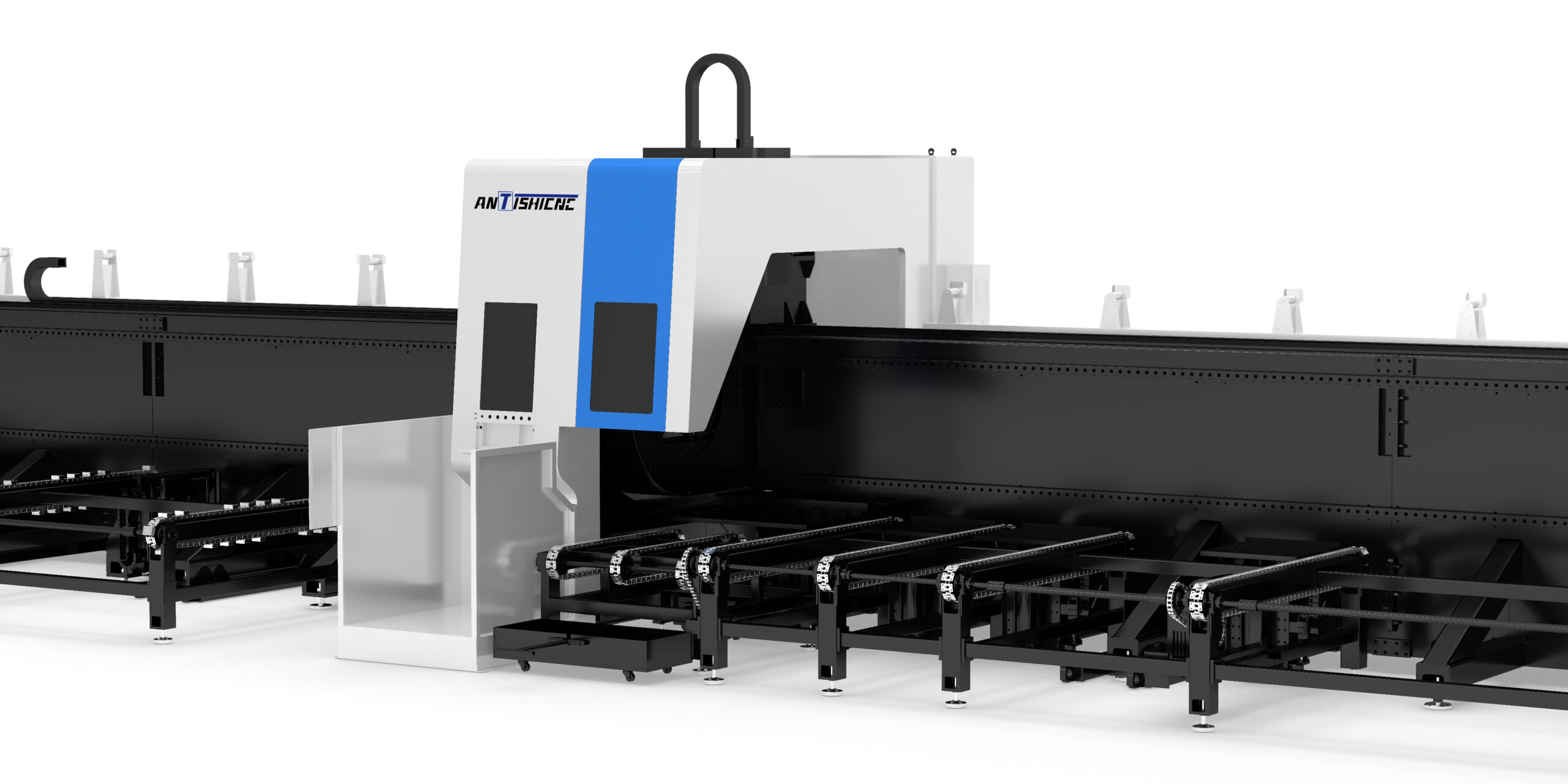

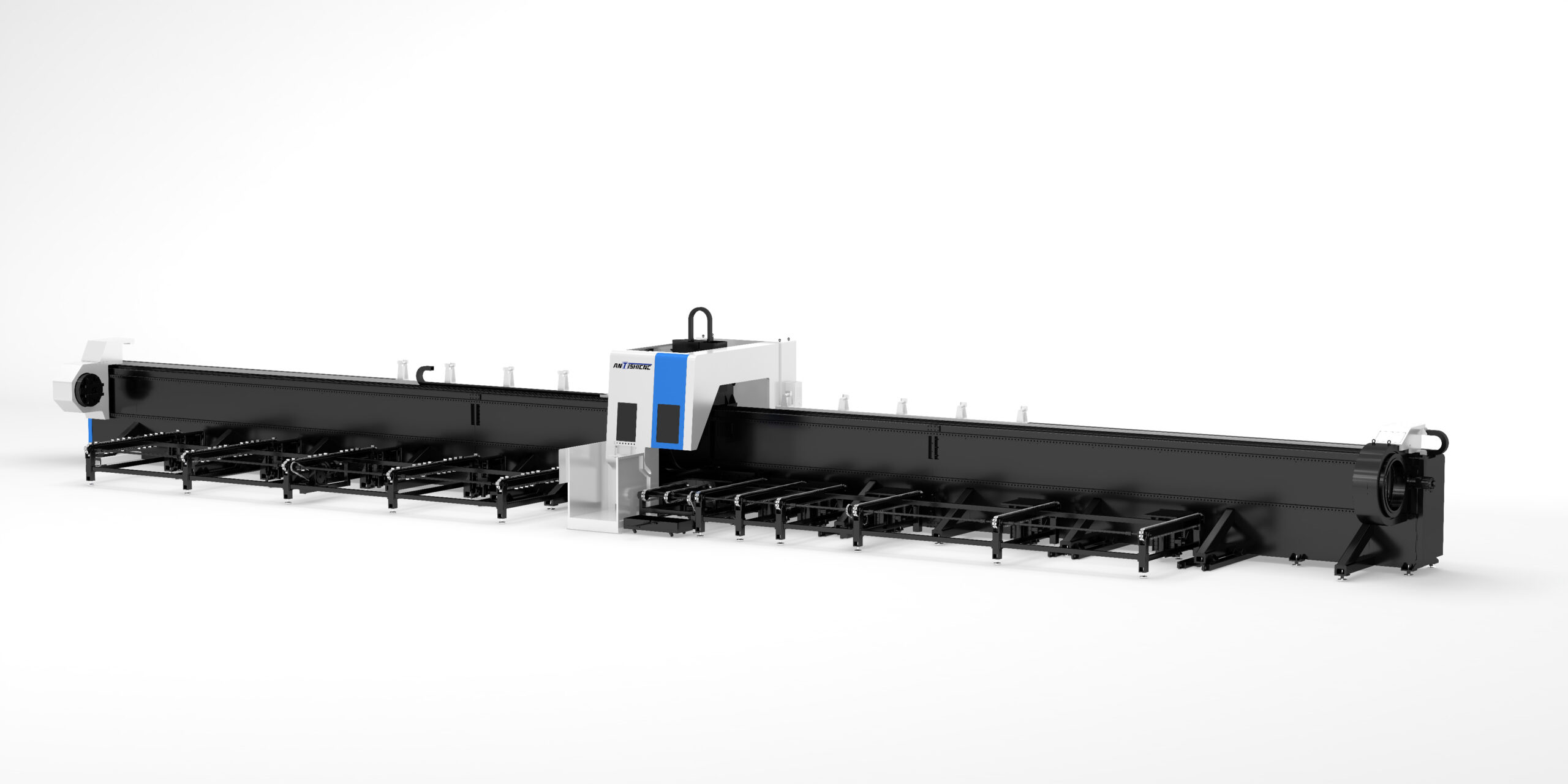

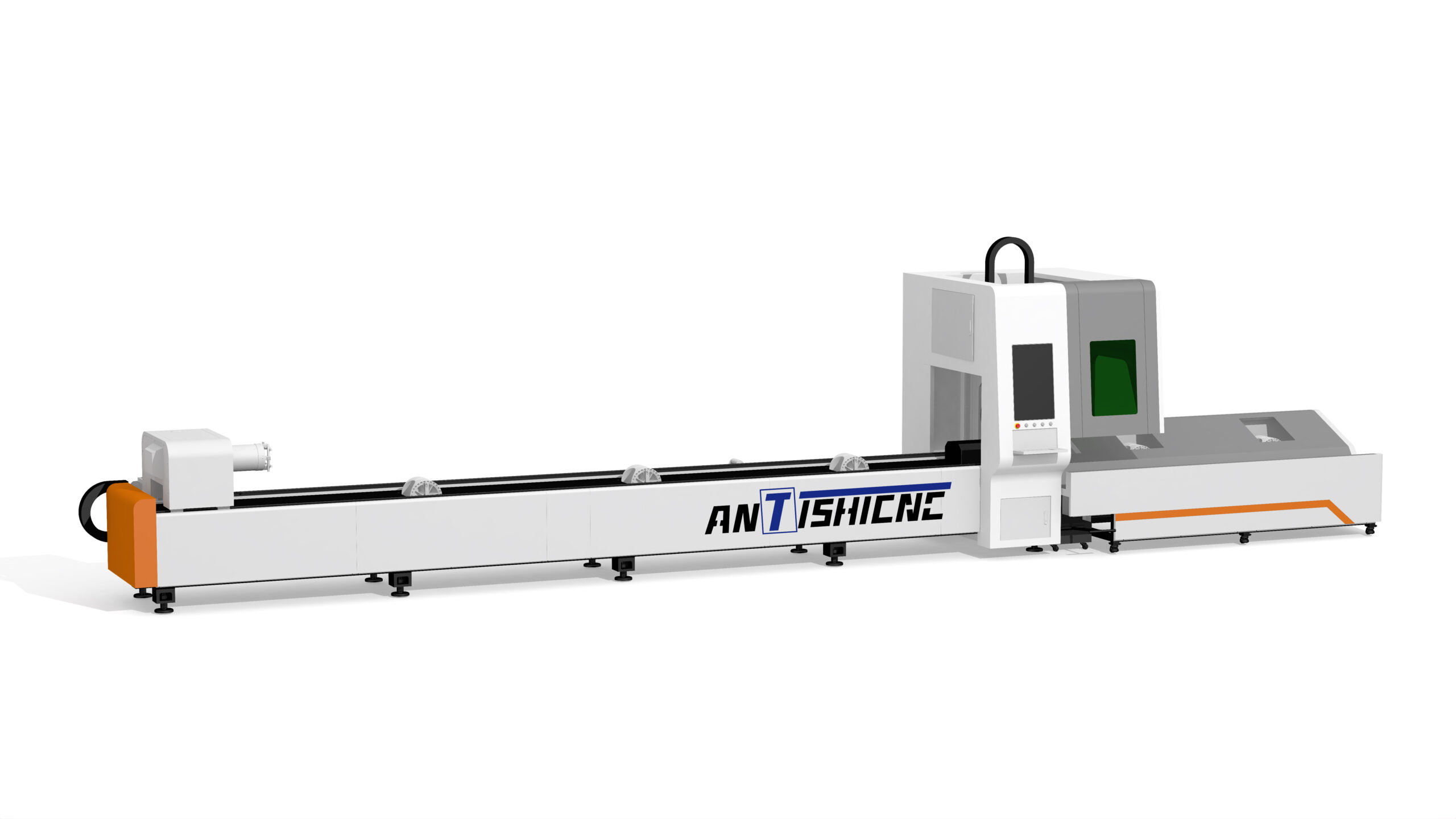

AP Series Professional Tube Laser Cutting Machine

ANTISHICNC the AP Series is a unique series of machines designed to deliver top-grade precision, reliability, and efficiency in sophisticated metal fabrication jobs. Whether your works require fine details or high-volume output, this machine is ready to deliver its best performance.

Factory Sale AP-6016 3kw & 6kw Pipe Laser Cutting Machine

  • Powerful numerical controllers and nesting software solve numerous technological problems. This, in turn, improves cutting accuracy, enhances perforation speed, and simplifies the operation, making it more convenient.

  • Its mechanical structure is simple, and just like the optical path, the maintenance is free; therefore, the cutting performance is relatively stable.

  • The fiber laser utilizes the rare element Ytterbium itself as the luminescent material, eliminating the need for high-purity helium, nitrogen, or carbon dioxide, and reducing their consumption.

Technical Proposal for AP-6016 3kw & 6kw Pipe Laser Cutting Machine

ModelAP-6016
Chuck size160*160mm
Rotary length6000mm
Laser typeFiber laser generator
Laser power3kw/6kw Raycus
Laser HeadRaytools 3D
Graphic format supportedCAD. DXF (etc)
Voltage380V 50HZ 3PH
Working environmentTemp:0-40℃,humidity:≤80% No condensation
Position accuracy ±0.03mm/1000mm
Reposition accuracy±0.02mm/1000mm
Lubrication systemFull-automatic
Max speed80 rotates /Min
Max accelerated speed1.0G
Max. cutting diameter160mm
Min Cutting diameter20mm
Max. cutting length6000mm
Min. cutting length150mm
Machine bodyGantry milling, De-stressing, De-firing

Factory Sale AP-6035 3kw Pipe Laser Cutting Machine

  • Good cutting quality: No contact cutting, with a small area affected by heat on the cutting edge; practically nonexistent thermal deformation of the workpiece; edge collapse caused by punching and shearing is avoided, and generally, no secondary processing is needed.

  • Save on mold investment: can process various kinds of complicated structures with just a drawing on the computer for laser processing; there is no mold, no mold consumption, and no mold repair, saving mold replacement time and thereby reducing machining costs to lower production costs.

  • Material saving: With computer programming, different product shapes can be cut, thereby maximizing material utilization.

Technical Proposal for AP-6035 3kw Pipe Laser Cutting Machine

ModelAP-6035
Chuck sizeDiameter 350mm
Rotary length6000mm
Laser typeFiber laser generator
Laser power3kw Raycus
Graphic format supportedCAD. DXF (etc)
Voltage380V 50HZ 3PH
Working environment Temp:0-40℃,humidity:≤80% No condensation
Position accuracy ±0.03mm/1000mm
Reposition accuracy ±0.02mm/1000mm
Min Cutting diameter20mm
Min. cutting length150mm
Lubrication systemFull-automatic
Max speed60 rotates /Min
Max accelerated speed0.6G
Machine bodyGantry milling, De-stressing, De-firing
Machine sizeAbout 11280*2034*2676mm
WeightAbout 3500 KG
Machine bodyGantry milling, De-stressing, De-firing

Factory Sale AP-6045 12kw Pipe Laser Cutting Machine

  • With capacitive induction control in the cutting head, the nozzle maintains a constant distance to the workpiece surface. Therefore, the cutting not only works on the plane surface but also on all kinds of uneven surfaces;

  • Cutting quality is good; non-contact cutting, the heat effect on the cutting edge is minimal, basically thermal deformation of the workpiece, avoiding the collapse of the edge formed by shear punching of the material, and it requires little to no secondary processing for the slit;

  • Grinding is significantly less hazardous, with improved safety considerations. Through computer programming, various shapes of products for cutting can be created to maximize the use of materials.

Technical Proposal for AP-6045 12kw Pipe Laser Cutting Machine

SpecificationsAP-6045
Max. cutting length6000mm
Laser?Wavelength1080nm
Laser?Power6kw/12kw?Raycus?Global?Edition
Working?Life?of?Fiber?SourceMore?than?100000?hours
Position?TypeRed?Dot?Pointer
Cutting?Thickness0.5-15mm?for?Large?Quantity?Process
Max.?Idle?Running?Speed60M/min
Geometric Position Accuracy Within ±0.05mm/M
Reorientation Accuracy Within Within ±0.03mm/M
Lubrication?SystemElectrical?Motored
Transmit?systemDual?Rack?&?Pinion?type
Auxiliary?Gas?for?Cutting/Assist?sysOxygen,?Nitrogen,?Air/Germany?SMC
Compatible?SoftwareAutoCAD,?CorelDraw,?etc.
Handle?ControlWIFI?Wireless?Control?Handle
Working Environment Temp: 0-40℃,humidity: ≤80% No condensation
Graphic?FormatDXF/PLT/AI
Power?Supply?Voltage380V/3Ph/50Hz
Warranty2Years

Factory Sale AP-8016 1.5kw & 3kw Tube Laser Cutting Machine

  • With capacitive induction control in the cutting head, the nozzle maintains a constant distance to the workpiece surface. Therefore, the cutting not only works on the plane surface but also on all kinds of uneven surfaces;

  • Cutting quality is good; non-contact cutting, the heat effect on the cutting edge is minimal, basically thermal deformation of the workpiece, avoiding the collapse of the edge formed by shear punching of the material, and it requires little to no secondary processing for the slit;

  • Grinding is significantly less hazardous, with improved safety considerations. Through computer programming, various shapes of products for cutting can be created to maximize the use of materials.

Technical Proposal for AP-8016 1.5kw & 3kw Tube Laser Cutting Machine

ModelAP-8016
Working area8000mm*160mm
Laser power1500W/3000W Raycus
Transmission systemGantry Double-drive structure
Maximum speed120m/min
Laser typeFiber laser generator
Graphic format supportedCAD. DXF (etc)
Working environment Temp:0-40℃,humidity:≤80% No condensation
Reposition accuracy±0.02mm/1000mm
Lubrication systemFull-automatic
Maximum accelerated speed1.0G
Machine size12470*2650*2100mm
Machine Weight3500 KG
Machine bodyPlate welded, Gantry milling, De-stressing, De-firing

Factory Sale AP-8022 1.5kw & 3kw Tube Fiber Laser Cutting Machine

  • With capacitive induction control in the cutting head, the nozzle maintains a constant distance to the workpiece surface. Therefore, the cutting not only works on the plane surface but also on all kinds of uneven surfaces;

  • Cutting quality is good; non-contact cutting, the heat effect on the cutting edge is minimal, basically thermal deformation of the workpiece, avoiding the collapse of the edge formed by shear punching of the material, and it requires little to no secondary processing for the slit;

  • Grinding is significantly less hazardous, with improved safety considerations. Through computer programming, various shapes of products for cutting can be created to maximize the use of materials.

Technical Proposal for AP-8022 1.5kw & 3kw Tube Fiber Laser Cutting Machine

ModelAT-8022
Working area8000mm*220mm
Laser power1500W/3000W Raycus
Position accuracy ±0.03mm/1000mm
Transmission systemGantry Double-drive structure
Maximum speed120m/min
Laser typeFiber laser generator
Graphic format supportedCAD. DXF (etc)
Working environment Temp:0-40℃,humidity:≤80% No condensation
Reposition accuracy±0.02mm/1000mm
Lubrication systemFull-automatic
Maximum accelerated speed1.0G
Machine bodyPlate welded, Gantry milling, De-stressing, De-firing

Components of AP Series Professional Tube Laser Cutting Machine

image 2025 08 06T164015.830
Taiwan famous brand (HIWIN)

Low noise, wear-resistant, smooth to keep the fast-moving speed of the laser head.

The linear transmission system comprises a Helical Rack and linear guides, which improve accuracy and efficiency.

image 2025 08 06T164141.644
Taiwan famous brand (YYC)

High precision, long life, can provide rigorous support for quenching helical gears and grinding helical gears, so that the load drive structure is compact, can effectively reduce the driving torque.

image 2025 08 06T164256.165
Japan SMC Proportional valve

for controlling oxygen flow

image 2025 08 06T164553.265
Schneider electric components

Circuit protection against short-circuit or overload currents

image 2025 08 06T164721.270
Automatic Lubrication system

Keep the guide rail and rack lubricating during machine running for X-axis, Y-axis and Z-axis.

image 2025 08 06T164901.063
Pneumatic Chuck

Length: 6000mm

Max diameter: 160mm

AP Series Professional Tube Laser Cutting Machine Product Display Picture

Quality Assurance and After-Sales Service

Shanghai ANTISHI guarantees that the products shipped from the factory are brand new and unused, guaranteeing high quality and reliable performance.

For the products sold by Shanghai ANTISHI, we provide users with free technical consultation before sale, and are responsible for providing user pre-sales training. Technicians provide unconditional technical support, guide and assist customers in installation; one-year free warranty, lifetime service, and labor costs for over-guaranteed machine tools. During the warranty period, the company will provide free parts (except wearing parts) that are not damaged due to improper operation.

Warranty Terms:

Shanghai ANTISHI guarantees that the products shipped from the factory are brand new and unused, guaranteeing high quality and reliable performance.

For the products sold by Shanghai ANTISHI, we provide users with free technical consultation before sale, and are responsible for providing user pre-sales training. Technicians provide unconditional technical support, guide and assist customers in installation; one-year free warranty, lifetime service, and labor costs for over-guaranteed machine tools. During the warranty period, the company will provide free parts (except wearing parts) that are not damaged due to improper operation.

GUARANTEE:

(1）24 hours online service

(2）User-friendly English manual and Video CD for machine using and maintaining.

(3）overseas support
