Top Double Column Surface Grinder Manufacturers and Suppliers in China

Double Column Surface Grinder

Uncover premium suppliers and manufacturers of double-column surface grinders within China who deliver outstanding surface grinders machines that are capable of handling the most demanding of operations. These machines have robust and rigid designs along with highly advanced and powerful CNC controls, spindles ,and tools, which are cost-effective.

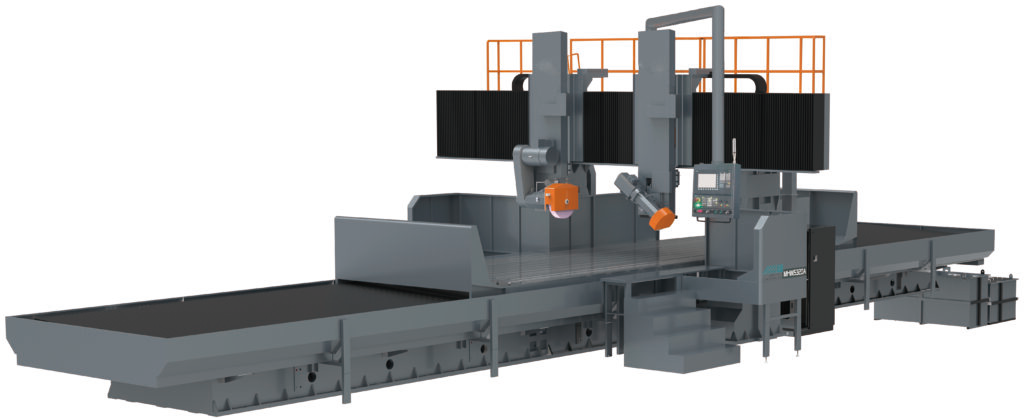

MC(K)W53 Series-Double Column Guideway Grinder Product Details

  • The machine in this series has a gantry configuration and consists of a double column and a beam, along with a bed. This forms a closed, highly rigid frame that has high accuracy.

  • It is an NC servo-controlled fixed beam gantry rail grinder and is a fusion of modern machine with electric machining and hydraulic technologies.

  • The advantages of a hydrostatic bearing with high motion accuracy are no wear and tear, a long life span, a small starting power, high resistance against vibration even at high speeds, and good bearing capacity.

  • Longitudinal motion is programmed at hydraulic variable speeds.

  • The MKW series also has an added advantage of having a CNC system integration, which expands its capabilities to a 2-axis CNC machine.

MC(K)W53 Series-Double Column Guideway Grinder Technical Parameter

Technical DescriptionUnitMC(K)W5316AMC(K)W5320AMC(K)W5325AMC(K)W5330AMC(K)W5335A
Table widthmm12501600200025003000
Table lengthm2.0/2.5/3.5/42.5/3.5/4.5/6/83.5/4.5/6/8/10/12/14/15/168/10/12/13/14/15/168/10/12/13/14/15/16
Max. grinding heightmm950950950950950
Max.wheel center to tablemm12501250125012501250
Column distancemm16002000250030003500
Horizontal wheel head motorkw2222223030
Horizontal wheel sizemmφ600*120*203φ600*120*203φ600*120*203φ600*120*305φ600*120*305
Horizontal spindle speedmm10501050105010501050
Vertical head motormm1111111515
Vertical wheel sizemmφ400*75*127φ400*75*127φ400*75*127φ400*75*127φ400*75*127
Vertical spindle speedmm800-2500800-2500800-2500800-2500800-2500
Vertical head rotation°±90±90±90±90±90

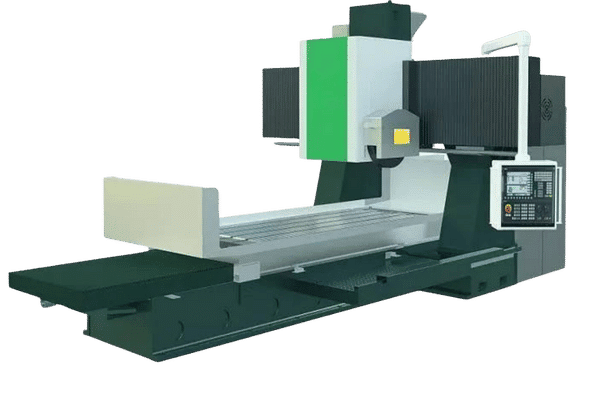

MC(K)W7520x25 MC(K)W7520x35 MC(K)W7525x40-Double Column Surface Grinder

MC(K)W7520x25 MC(K)W7520x35 MC(K)W7525x40-Double Column Surface Grinder

  • The hydro-static bearing provides notable advantages including: exceptional precision, high longevity, zero wear, minimal start-up energy, and excellent vibration resistance, leading to high dynamic load capacities.

  • Longitudinal moves with adjustable hydraulic drives.

  • The CNC interfaced MKW series machines can be expanded to a 2 axis CNC configuration.

MC(K)W75 Serise Technical parameter

Technical DescriptionUnitMC(K)W7520*25MC(K)W7520*35MC(K)W7525*40
Table size(W*L)mm1600*25001600*35002000*4000
T-slot£¨size*distance*No.£©mm28*200-728*200-736*250-7
Column distancemm200020002500
Table speedm/min5~255~255~25
X axis max strokemm280038004300
Max.grinding lengthmm250035004000
Y axis strokemm180018002300
Distance from wheel head center to tablemm250-750250-750250-850
Max. grinding weightmm6000600010000
Table longitudinal speedmm5~255~255~25
Wheel head Transverse movingMoving speedm/min0~30~30~3
Min. input unitmm0.0010.0010.001
Wheel vertical movingZ axis max. strokemm/t500500600
Moving speedm/min.0-0.40-0.40-0.4
Min. input unitmm.0.0010.0010.001
Wheel head motor powerKW18.518.518.5
Wheel size(OD*Width*ID)mm500*75*203500*75*203500*75*203
Spindle speedKW120012001200
Surface roughnessμmRa0.63Ra0.63Ra0.63
Gross weightkg210002100030000
machine dimension(L*W*H)cm770*400*310770*400*3101100*440*320
Tips: MCW control by PLC, MKW control by CNC

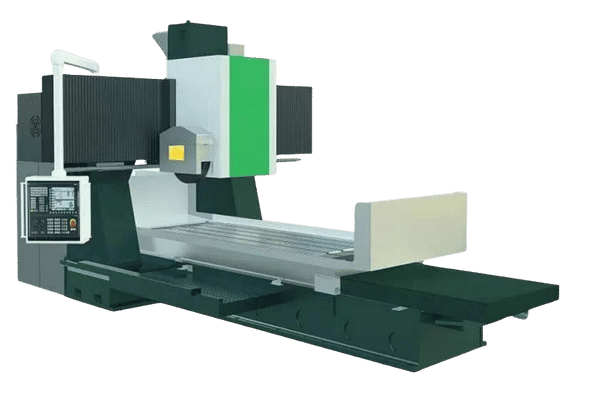

Double Column Surface Grinder-MC(K)W7525x50 /MC(K)W7530x60 /MC(K)W7535x60 Product Details

  • Maintaining a liquid layer in a bearing system results in accuracy of motion and a near total absence of friction, effectively eliminating wear of the bearing parts, giving the bearing a long life and low power requirement during startup, and high bearing capacity as well as high speed resistance to vibrations.

  • The longitudinal moves in variable speeds, it moves uniformly with the aid of a motor.

Double Column Surface Grinder-MC(K)W7525x50 /MC(K)W7530x60 /MC(K)W7535x60

Technical Parameter

Technical DescriptionUnitMC(K)W7525*50MC(K)W7530*60MC(K)W7535*60
Table size(W*L)mm2000*50002500*60003000*6000
T-slot£¨size*distance*No.£©mm36*250-728*200-736*250-7
Column distancemm250020002500
Table speedm/min5~255~255~25
X axis max strokemm430038004300
Max.grinding lengthmm400035004000
Y axis strokemm230018002300
Distance from wheel head center to table mm250-850250-750250-850
Max. grinding weightmm100001300015000
Table longitudinal speedmm5~255~255~25
Wheel head Transverse movingMoving speedm/min0~30~30~3
Min. input unitmm0.0010.0010.001
Wheel vertical movingZ axis max. strokemm/t600600600
Moving speedm/min.0-0.40-0.40-0.4
Min. input unitmm.0.0010.0010.001
Wheel head motor powerKW18.518.518.5
Wheel size(OD*Width*ID)mm500*75*203500*75*203500*75*203
Spindle speedKW120012001200
Surface roughnessμmRa0.63Ra0.63Ra0.63
Gross weightkg300005600060000
machine dimension(L*W*H)cm1100*440*3201500*500*3601500*550*500
Tips: MCW control by PLC, MKW control by CNC

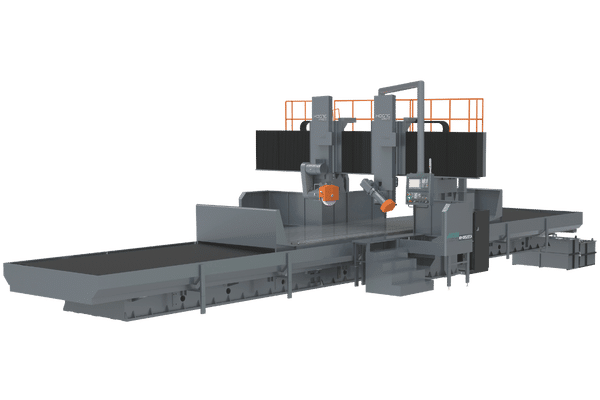

Double Column CNC Gantry Guide Grinder Machine

Double Column CNC Gantry Guide Grinder Machine

  • The entire system adopts a gantry type layout composed of double columns, beam and bed body.

  • The beam is rigid with good mechanical properties as it has a ladder structure and partially attached steel guide rails with a roller block.

  • The dynamic and static shaft tiled spindle of the grinding head has high longevity, movement precision and good anti-vibration performance.

  • The working table which is advanced is driven by an oil cylinder with low noise and stable movement, which is step-less speed controlled.

Technical Parameter

Technical DescriptionUnitMKW5225AMKW5230AMKW5240A
Table widthmm200025003000
Table lengthm6/8/10/12/14/15/168/10/12/13/14/15/168/10/12/13/14/15/16
Max. grinding heightmm2000/2500/3000
Column distancemm250030004000
Horizontal wheel head motorkw303030
Horizontal wheel sizemmφ600*150*305φ600*150*305φ600*150*305
Horizontal spindle speedmm105010501050
Vertical head motormm151515
Vertical travel of Horizontal headmm250250250
Vertical travel of vertical headmm800800800
Vertical wheel sizemmφ600*100*250φ600*100*250φ600*100*250
Vertical spindle speedmm800-2500800-2500800-2500
Vertical head rotation°±90±90±90

The Complete Guide to Double-Sided Grinders: Precision Grinding and Machine Advancements

Double sided grinders have specialized grinding machines that perform operations simultaneously on both sides of a workpiece. Such design permits constant observation and self-correction to get to predetermined dimensions without much oversight.
