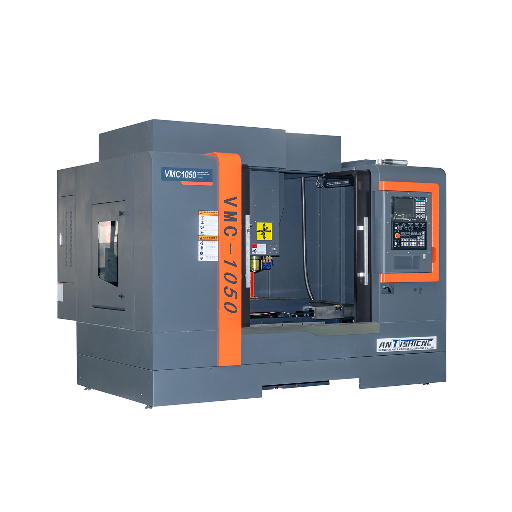

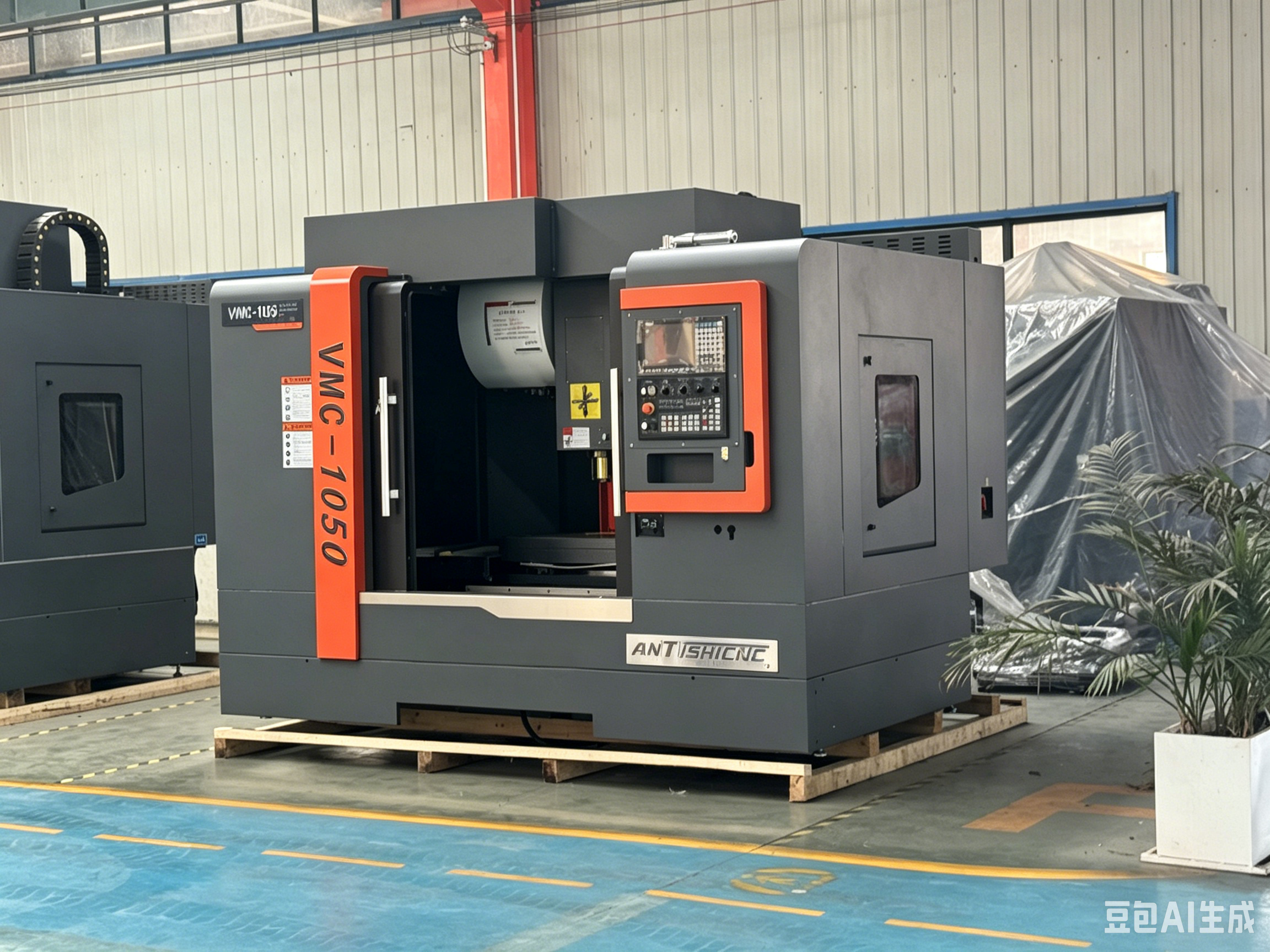

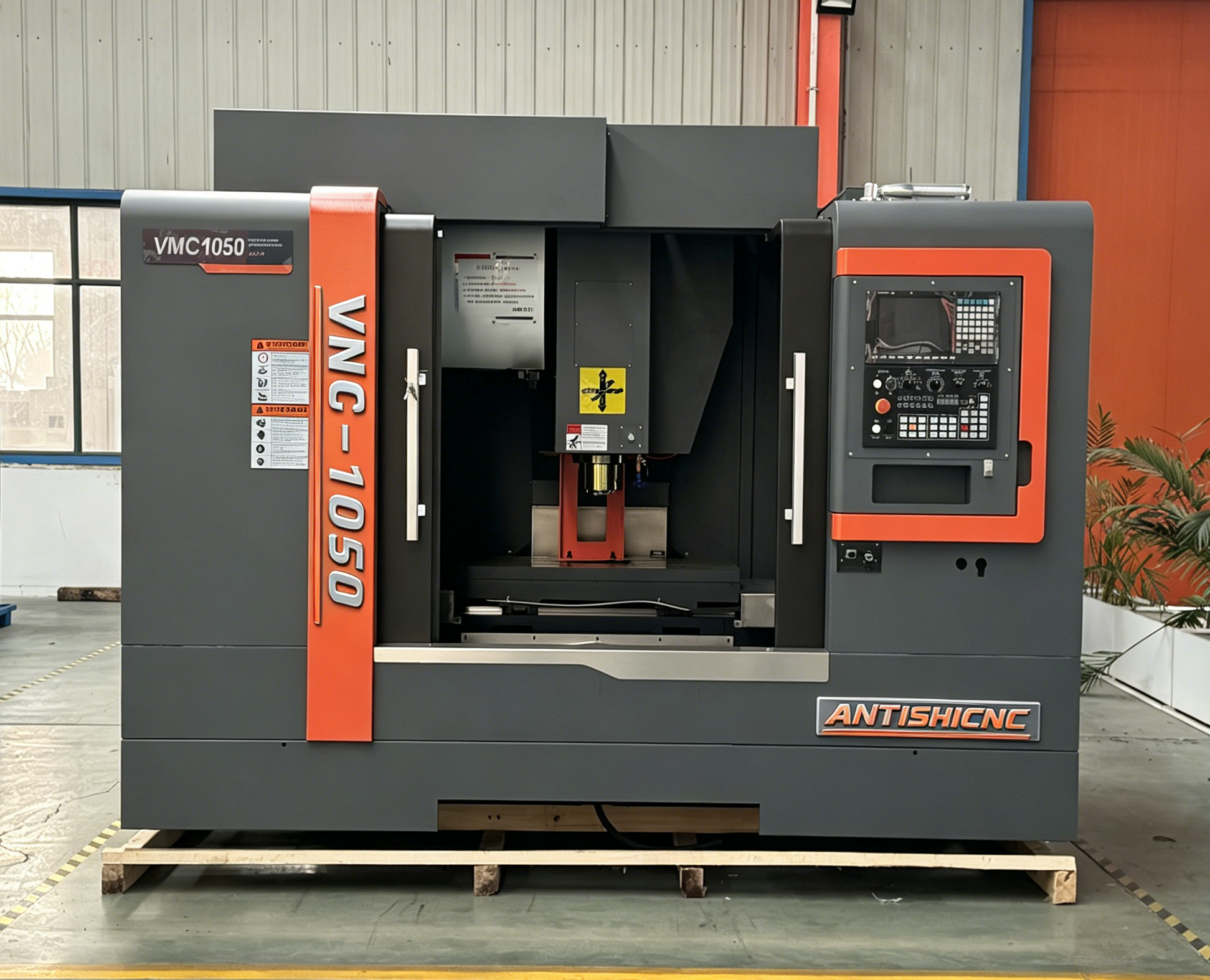

ANTISHICNC is the name synonymous with precision, creativity, and reliability when it comes to the world’s premier vertical milling centers. ANTISHICNC commands respect globally for its adherence to stringent quality and efficiency standards in meeting the ever-evolving demands of modern manufacture. Witness the wonders of superb Chinese engineering and raise your production power with these great vertical milling machine centers.”
| Specifications | Units | VMC1050 |
|---|---|---|
| worktable | Workbench size mm | 500*1050 |
| Workbench T-slot | 5-18*90 | |
| Maximum load of workbench (kg) | 600 | |
| Travel | Left and right stroke (X)mm | 1000 |
| Front and rear travel (Y)mm | 500 | |
| Up and down stroke (Z)mm | 600 | |
| Spindle | Distance from spindle center to column guide rail mm | 560 |
| Distance from spindle end face to work table mm | 140-740 | |
| Spindle tool holder | BT40 | |
| Spindle speed (rpm) | 8000 | |
| Installation diameter | Φ150 | |
| Spindle motor power (Kw) | 7.5 | |
| Servo motor | X.Y.Z axis servo motor (Kw) | 2.4 |
| X.Y.Z motor connection method | Direct | |
| X.Y.Z guide rail method | Line rail | |
| Tool magazine | Tool magazine capacity (tools) | 24 disc type tool magazine |
| Maximum tool weight Kg | 8 | |
| Maximum tool length mm | 300 | |
| Pull nail model | BT40 45° | |
| Tool holder model | BT40 | |
| Fast-moving | XYZ rapid traverse speed m/min | 20-20-15 |
| Cutting feed speed m/min | 10 | |
| XYZ repeat positioning accuracy mm | ±0.004 | |
| Machine size | (L*W*H)mm | 3200×2420×2400 |
| Machine weight | (T) | 6 |
| CNC system | KND , SIMENS or FANUC |
The spindle can achieve stepless speed regulation within its speed range. The spindle is controlled by a built-in encoder in the motor, enabling spindle orientation and rigid tapping functions.
The tool magazine can be of 16 or 24 high-speed automatic tool changes. The tool changing is accurate, fast, and efficient. It has been tested and used for millions of operations fulfilling reliability requirements; it can be equipped with either a type hat or type round. Damping structures are included in the disc-type and the hat-type tool magazines to absorb shock during movement, thus enhancing the tool magazine service life.
The screws and nuts are processed, ground, assembled and quality controlled in a constant temperature workshop to ensure their high-precision stability.
The end face of the spindle box is equipped with a cooling nozzle, which can be water-cooled or air-cooled, and can be switched at will. The cooling process can be controlled through M code or control panel.
The pneumatic triplex can filter impurities and moisture in the air source to prevent impure gas from damaging and corroding machine tool components. The solenoid valve group is controlled by PLC program to ensure that spindle tool unclamping, spindle tool clamping, spindle air cooling and other actions can be completed quickly and accurately.
The guide rails, ball screw pairs and support bearings all use centralized automatic thin oil lubrication. Each node is equipped with a quantitative oil separator, which regularly and quantitatively injects oil into each lubrication part to ensure that each sliding surface is evenly lubricated, effectively reducing friction resistance.
Quality Assurance and After-Sales Service
Warranty service:
One year warranty( 12 months since customer receive & use the machine).
The manufacturer guarantees to provide life-long paid maintenance services for the product.
