Top Vertical Milling Machine Center Manufacturers and Suppliers in China

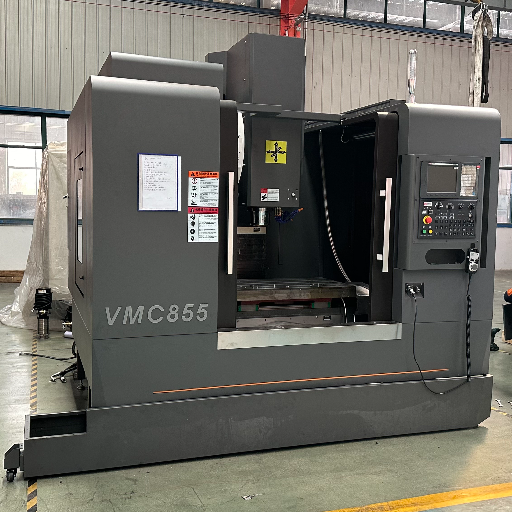

VMC855 Vertical Milling Machine Center

The VMC855 Vertical Milling Machine Center redefines precision and performance, standing as a benchmark for efficiency and versatility. Engineered with meticulous craftsmanship and enhanced by cutting-edge innovations from leading Chinese manufacturers ANTISHICNC, this machine is designed to meet the diverse and demanding needs of modern industries.

Factory Sale VMC855 Vertical Milling Machine Center

  • The VMC machine is capable of all operations, including drilling, milling, boring, reaming, tapping, and others. It provides the perfect machining environment for very delicate works like disks, plates, shells, cams, and molds that can either be single-piece or batch production out of single clamping. Its programmable processing also decreases production time and thus realizes very economic benefits.

  • Through using resin sand castings and optimization via SolidWorks and Ansys software, the machine is designed vertically with its frame layout maximized for a reinforced structural strength. This guarantees a high stiffness and great stability, and long-term accuracy as the structure suppresses deformation and vibration induced by cutting forces.

  • The VMC series employs the use of C3 grade, double-nut preloaded ball screws and P4-grade screw bearings. This combination enables high precision and a reduction in thermal deformation. Another feature on the Z-axis is a servo motor that has an automatic brake function for safety; when the power fails, it will brake and not allow rotation to secure operation.

Technical Proposal for Vertical Milling Machine Center

Technical SPEC| ModelUnitVMC855
Table Size(length*width)mm1000×550
Max Loading Weightkg500
Number-width x distancemm5-18×90
X/Y/Z Travelmm800/550/550
Max .Distance From spindle nose tomm120-670
Table Surface
Spindle center to Z axis guide surfacemm590
Spindle motor powerkW7.5
Max. Spindle Speedrpm8000
Spindle TaperBT40
3 axis rapid speedm/min40/40/24
Max cutting speedm/min1-10000
Max. Diameter of tool lengthmm300
Maximum tool weightKg8
Maximum tool diameter (full /adjacent)mmφ80/φ160
Positioning Accuracy X/Y/Zmm±0.016/±0.016/±0.016
Repeatability Accuracy X/Y/Zmm±0.005/±0.005/±0.005
ATC capacity-BT40-24T
Total machine powerKVA15
CNC system-FANUC/SIEMENS/MITSUBISHI
Machine Size (L*W*H)mm2600x2380x2720
Machine WeightKg5500

Components of Vertical Milling Machine Center

Spindle
Spindle

The spindle can achieve stepless speed regulation within its speed range. The spindle is controlled by a built-in encoder in the motor, enabling spindle orientation and rigid tapping functions.

Tool magazine
Tool magazine

The tool magazine can be of 16 or 24 high-speed automatic tool changes. The tool changing is accurate, fast, and efficient. It has been tested and used for millions of operations fulfilling reliability requirements; it can be equipped with either a type hat or type round. Damping structures are included in the disc-type and the hat-type tool magazines to absorb shock during movement, thus enhancing the tool magazine service life.

Transmission
Transmission

The screws and nuts are processed, ground, assembled and quality controlled in a constant temperature workshop to ensure their high-precision stability.

Cutting cooling system
Cutting cooling system

The end face of the spindle box is equipped with a cooling nozzle, which can be water-cooled or air-cooled, and can be switched at will. The cooling process can be controlled through M code or control panel.

Pneumatic system
Pneumatic system

The pneumatic triplex can filter impurities and moisture in the air source to prevent impure gas from damaging and corroding machine tool components. The solenoid valve group is controlled by PLC program to ensure that spindle tool unclamping, spindle tool clamping, spindle air cooling and other actions can be completed quickly and accurately.

Lubrication system
Lubrication system

The guide rails, ball screw pairs and support bearings all use centralized automatic thin oil lubrication. Each node is equipped with a quantitative oil separator, which regularly and quantitatively injects oil into each lubrication part to ensure that each sliding surface is evenly lubricated, effectively reducing friction resistance.

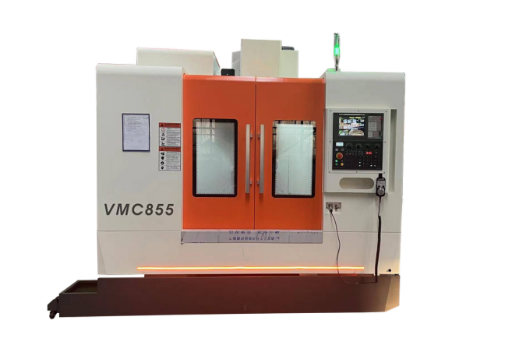

vMC855 Vertical Milling Machine Center Product Display Picture

Quality Assurance and After-Sales Service

  1.  Since the final acceptance of the machine tool, the machine tool spindle, tool magazine, automatic tool changer, X/Y/Z axis ball screw, all failures caused by quality problems will be guaranteed for one year free of charge.
  2. Since the final acceptance of the machine tool, the failure of other parts caused by quality problems will be guaranteed for one year free of charge.
  3.  Since the final acceptance of the machine tool, we also guarantee to actively cooperate with the user to repair the failure caused by the quality of the machine tool, and free labor costs within one year.
  4.  Lifetime guarantee to provide spare parts supply at preferential prices.

Warranty service:

One year warranty( 12 months since customer receive & use the machine).

The manufacturer guarantees to provide life-long paid maintenance services for the product.

VMC 855 CNC Vertical Machining Centers: Precision in Modern Manufacturing

Modern manufacturing thrives on precision, efficiency, and technology. Such qualities are epitomized by the VMC 855 CNC Vertical Machining Center in providing performance par excellence across various industry settings. In this comprehensive guide, we delve into CNC technology and explore how the VMC 855 rises above the rest as an essential tool for precision machining.
